2.7″, 128×64, Monochrome Graphic OLED Display

Model No. WEO012864Q

  • Type: Graphic
  • Structure: COG; Frame Option
  • Size: 2.7 inch
  • 128 x 64 Dot Matrix
  • Display Color: Monochrome
  • IC：SSD1309
  • 3V Power supply
  • 1/64 duty
  • Interface: 6800, 8080, SPI, I2C
  • Display Color: White / Yellow / Sky Blue / Green
Categories: ,

Description

WEO012864Q type is a 2.7 inch COG OLED display, made of 128×64 pixels. This graphic display is built-in SSD1309 controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire serial interface, 3V power supply. WEO012864Q is having the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm; it has the same OLED panel as existing WEO012864K with a 30-pin FPC, it’s FPC pin assignment has been defined as the same as WEX012864L (30 pins).

WEO012864Q is a COG structure OLED display; this OLED module is lightweight, low power and very thin, it is suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, intelligent technology devices, energy systems, communication systems, medical instrument, etc. WEO012864Q OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

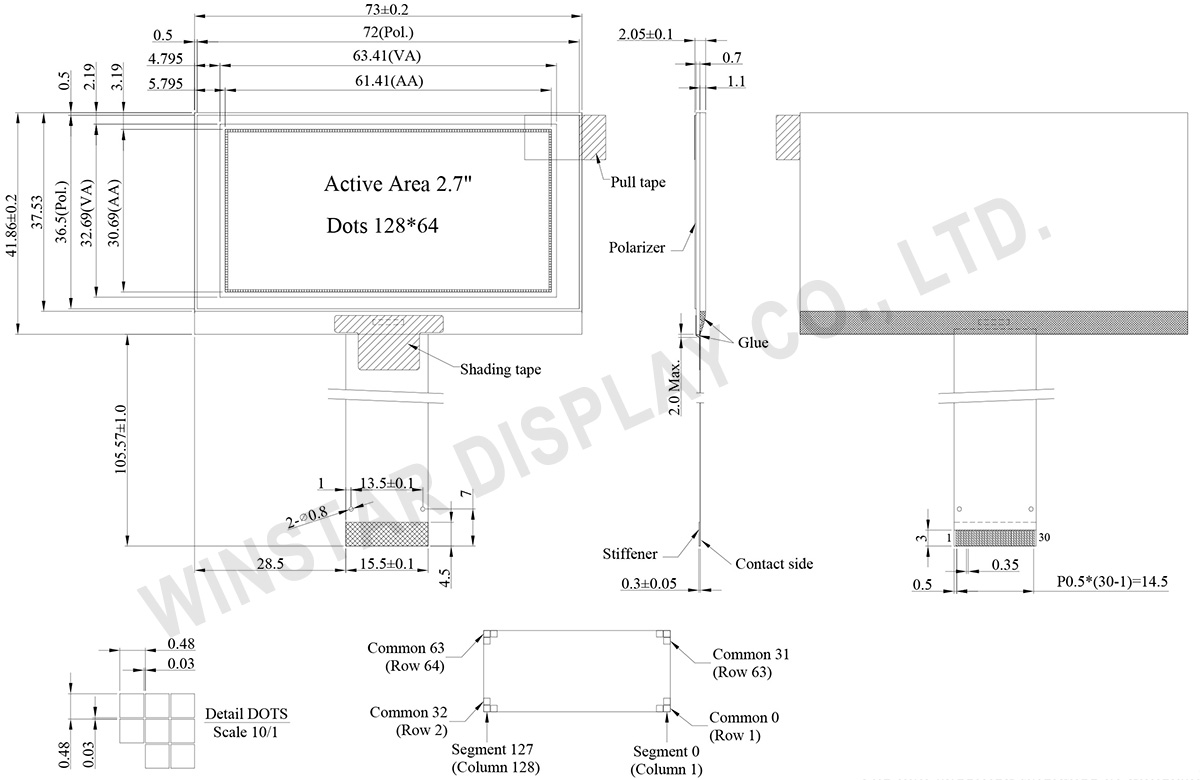

Drawing

Drawing

Winstar Display - 2.7", 128x64, Monochrome Graphic OLED Display

Data source ref: WEO012864QWPP3N00000

SPECIFICATIONS

SPECIFICATIONS

Interface Pin Function

No. Symbol Function
1 NC No connection
2 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
3 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
4 IREF This pin is the segment output current reference pin. IREF is supplied externally.
5~12 D7~D0 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
13 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
14 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
15 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
16 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
18 NC No connection
19 BS2 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2, BS1 and BS0 are pin select

BS1 BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68XX parallel 0 1
8-bit 80XX parallel 1 1

Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
20 BS1
21 VDD Power supply pin for core logic operation
22~28 NC No connection
29 VSS Ground.
30 NC No connection

General Specification

General Specification

Item Dimension Unit
Dot Matrix 128 × 64 －
Module dimension 73.0 × 41.86 × 2.05 mm
Active Area 61.41 × 30.69 mm
Pixel Size 0.45 × 0.45 mm
Pixel Pitch 0.48 × 0.48 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface I2C, 4-Wire SPI ,6800, 8080
Size 2.7 inch



Absolute Maximum Ratings

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 15 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
Supply Voltage for Display VCC － 12.5 13 13.5 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
50% Check Board operating Current VCC =13.0V 20 22 24 mA

Frame Option

Frame Option

Drawing Material FR No. Detailed Drawing Create Date
WEF012864Q SUS-304 FFL60128640A221XXX00 View 20120131
