5.2″ SSD1963 Bar LCD Display

Model No. WF52QTZBSDBN0

Size : 5.2”
Resolution : 480 x 128 dots
View Direction : 6H
Interface : 8080, MPU
Controller IC : SSD1963
Control-Board : Yes
Brightness (cd/m²): 400
Frame Through Hole : Yes
Touch Screen : Without touch screen
O-Film : Yes

Description

WF52QTZBSDBN0 is a 5.2-inch bar-type TFT LCD with O-film wide viewing angles. The module is built-in with SSD1963 driver IC, supporting 8080/MPU interfaces. It has a resolution of 480×128 dots and a brightness of 400 cd/m2. The module dimension is 180.0 × 65.0 × 8.8 mm with an active area of 127.152 × 33.9072 mm. The display features a glare surface, 6 o’clock view direction, and 12 o’clock gray scale inversion direction.

The display comes with a control board with four screw holes so users can easily mount it with various applications. Its supply voltage for LCM (VDD) is from 3.0V to 3.3V (typical value: 3.1V). This bar TFT can operate at a temperature range from -20℃ to +70℃, and its storage temperatures are from -30℃ to +80℃.

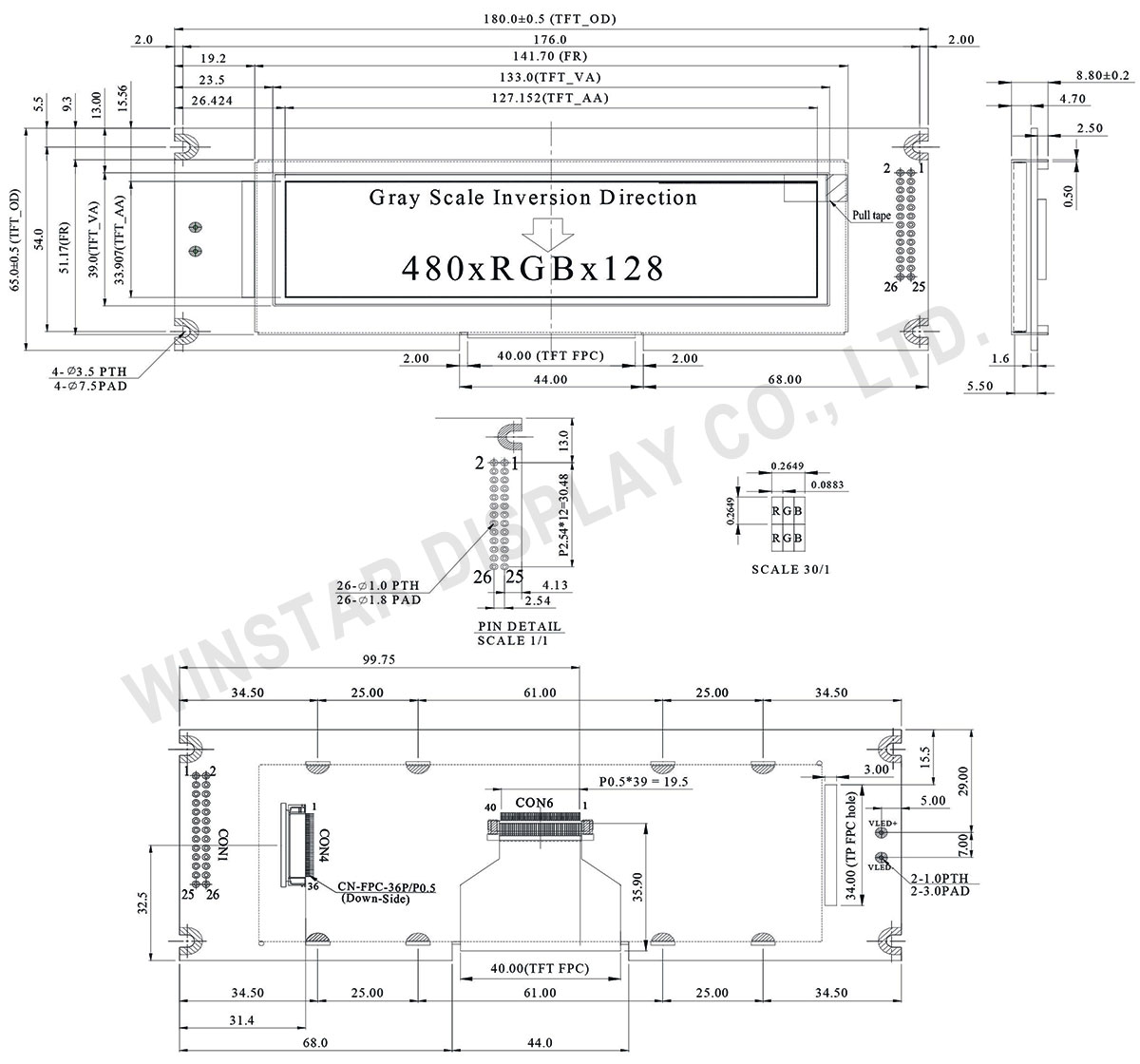

Drawing

Interface

LCM PIN Definition (CON4)

Pin	Symbol	Function
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7~14	DB0~DB7	Data bus
15~22	DB8~DB15	Data bus (When select 8bits mode, this pin is NC)
23~24	NC	No connect
25	CS	Chip select
26	RESET	Hardware reset
27	LR	Right /Left selection; Default R/L is Pull High
28	UD	Up/down selection; Default U/D is Pull High
29~32	NC	No connection
33	VLED-	VLED- for B/L LED inverter (GND)
34	VLED-	VLED- for B/L LED inverter (GND)
35	VLED+	VLED+ for B/L LED inverter (+5V)
36	VLED+	VLED+ for B/L LED inverter (+5V)

LCM PIN Definition (CON1)

Pin	Symbol	Function
1	NC(FG)	No connect (Frame Grand)
2	GND	System round pin of the IC. Connect to system ground.
3	VDD	Power Supply : +3.3V
4	BLE	Backlight control signal , H: On L: Off
5	WR	Write strobe signal
6	RD	Read strobe signal
7	CS	Chip select
8	D/C	Data/Command select
9	NC	No connect
10	RESET	Hardware reset
11~18	DB0~DB7	Data bus
19~20	NC	No connect
21	VLED+	VLED+ for B/L LED inverter (+5V)
22	VLED-	VLED- for B/L LED inverter (GND)
23~25	NC	No connect
26	GND	Hardware reset

General Specifications

Item	Dimension	Unit
Size	5.2	inch
Dot Matrix	480 × RGB × 128	dots
Module dimension	180.0 × 65.0 × 8.8	mm
Active area	127.152 × 33.9072	mm
Dot pitch	0.0883 × 0.2649	mm
LCD type	TFT, Normally White, Transmissive
View Direction	6 o’clock
Gray Scale Inversion Direction	12 o’clock
Aspect Ratio	Bar Type
Backlight Type	LED, Normally White
Driver IC	SSD1963
Interface	Digital 8080 family MPU 8bit/16bit
With /Without TP	Without touch panel (screen)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	－	3.0	3.1	3.3	V
Supply Current For LCM	IDD	－	－	200	－	mA
