3 inch LCD Display, Graphic LCD 160×80

Model No. WG16080D

Graphic LCD 160×80
3 inch LCD Display
160×80 dots
IC: RA6963
+5V power supply
1/80 duty cycle
Negative Voltage Built-in
Interface: 8080

Category: Graphic LCD

Description

WG16080D is a monochrome LCD 160×80 dot matrix display module which is having the module dimension of 93×70 mm and AA size of 66.17×33.57 mm; diagonal size 3 inch LCD Display. This WG16080D model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply negative voltage . This module is available for graphic mode or Character Generator mode (Character font) optional. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

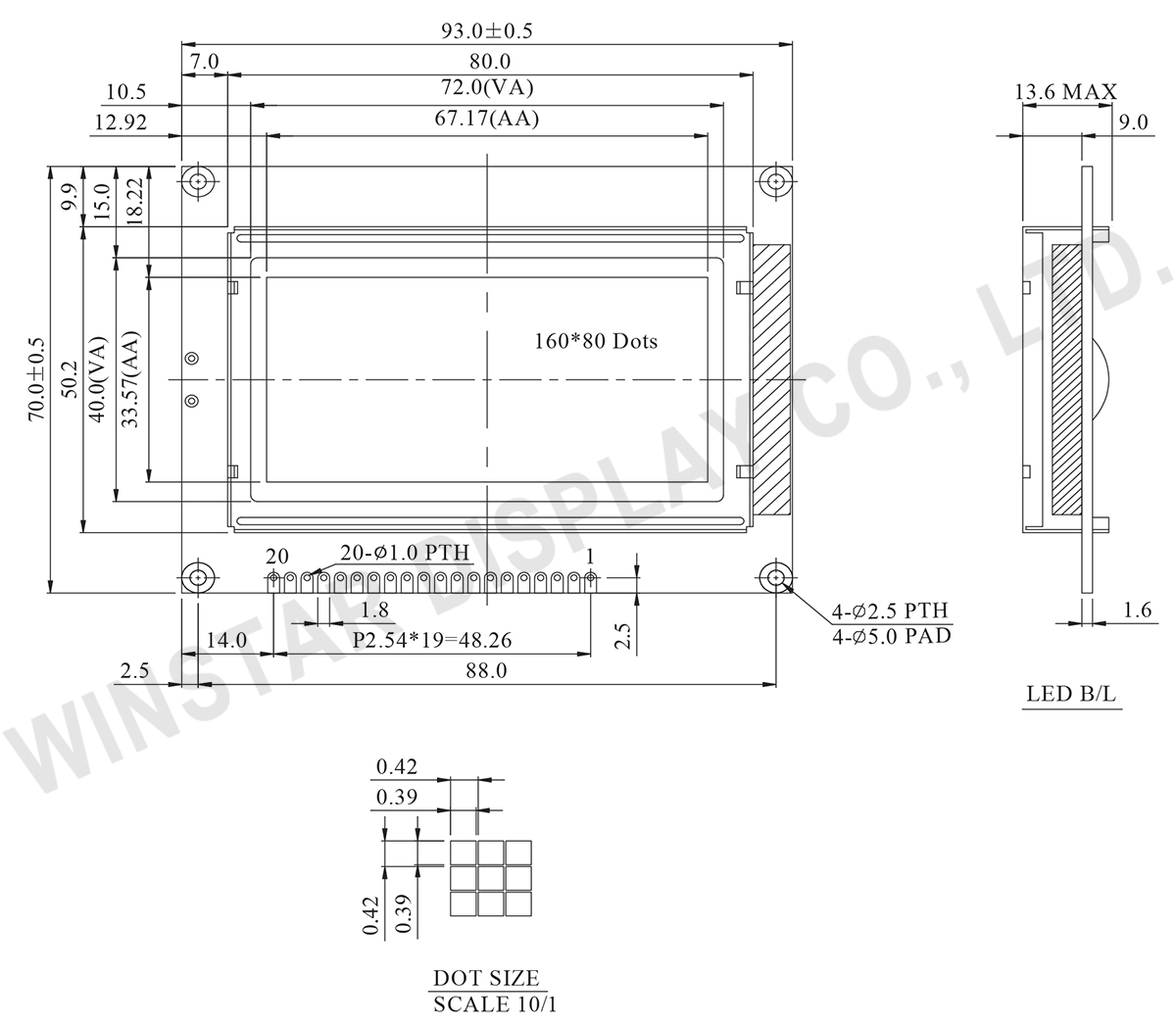

Drawing

Data source ref:WG16080D-TFH-VZ#

Specifications

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS		Ground
2	Vdd	5.0V	Power supply for logic circuit
3	Vo		Contrast Adjustment
4	/WR	H / L	Data write. Write data into RA6963C when /WR = L
5	/RD	H / L	Data read. Read data from RA6963C when RD = L
6	C/D	H / L	Command/data read/write
7	DB0	H / L	Data bus line
8	DB1	H / L	Data bus line
9	DB2	H / L	Data bus line
10	DB3	H / L	Data bus line
11	DB4	H / L	Data bus line
12	DB5	H / L	Data bus line
13	DB6	H / L	Data bus line
14	DB7	H / L	Data bus line
15	/CE	L	Chip enable the controller RA6963C
16	NC/FS		No connection / Pins for selection of font ;
17	/RST	L	Reset active “ L “
18	Vee		Negative voltage output
19	A		Power supply for B/L +
20	K		Power supply for B/L –

Mechanical Data

Item	Dimension	Unit
Number of dots	160 x 80	－
Module dimension	93.0 x 70.0 x 13.6(Max)	mm
View area	72.0 x 40.0	mm
Active area	67.17 x 33.57	mm
Dot size	0.39 x 0.39	mm
Dot pitch	0.42 x 0.42	mm
Duty	1/80DUTY,1/9BIAS
Backlight Type	LED
IC	RA6963
Interface	8080

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VIN	-0.3	－	VDD+0.3	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 13.2 －	－ 13.5 －	－ 13.8 －	V V V
Input High Volt.	VIH	－	0.8VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.15VDD	V
Output High Volt.	VOH	－	VDD-0.3	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.3	V
Supply Current	IDD	VDD=5.0V	－	18.2	－	mA
