RA8806 Graphics Module 160×160

Model No. WG160160E5/E3

  • Graphics LCD 160×160
  • IC: RA8806
  • WG160160E3: +3.3V power supply / WG160160E5: +5V power supply
  • Chinese version
  • 1/160 duty cycle
  • Interface: 8080
Category:

Description

Winstar standard LCD graphics modules WG160160E3 / WG160160E5 are built in with RA8806 controller IC. This LCD graphics module supports Traditional Chinese and Simplified Chinese Font, it communicates via 8080 parallel interface; 3.3V / 5V power supply.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

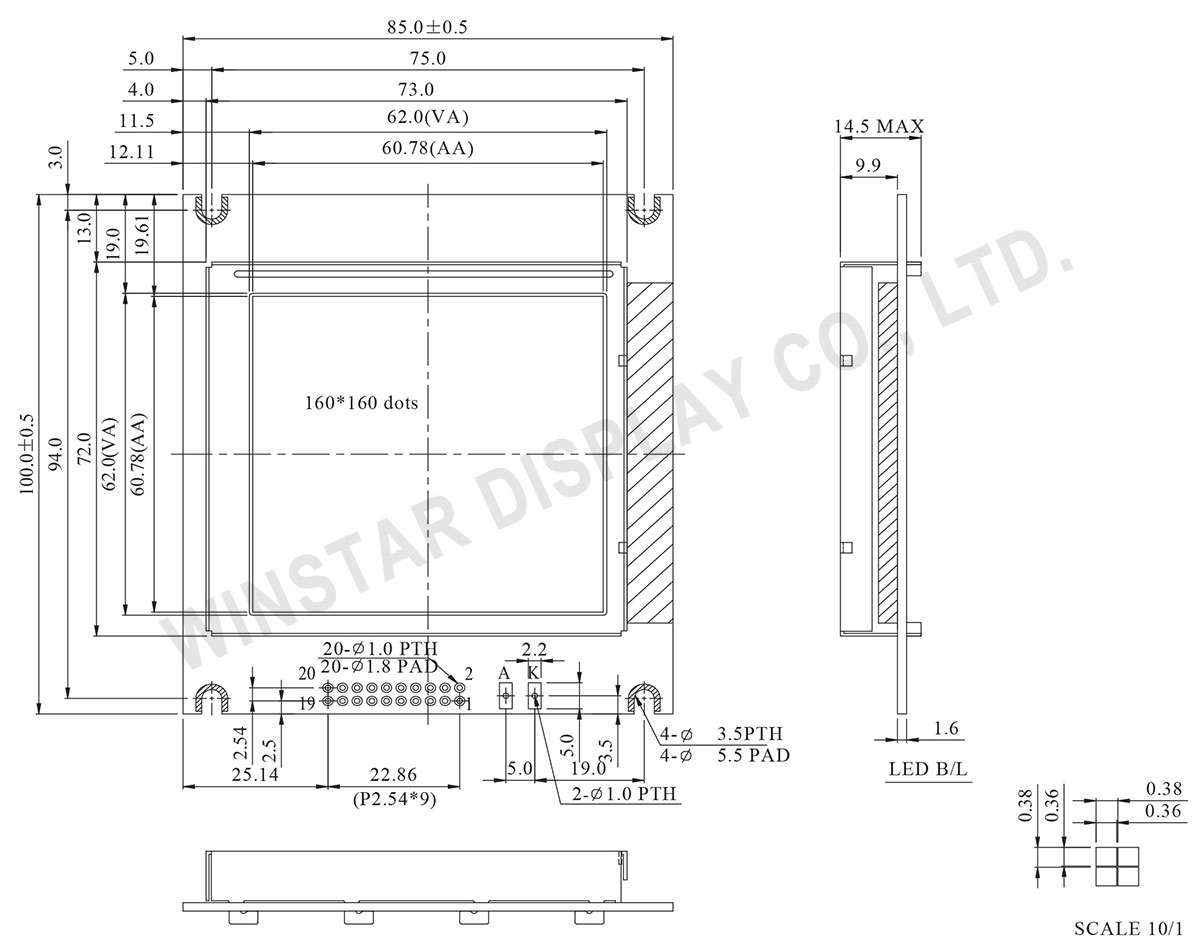

Drawing

Drawing


Data source ref: WG160160E3-TFH-VGB#

Specifications

Specifications

Interface Pin Function

Pin No. Symbol Level Description
1 FGND － Frame Ground
2 VSS － GND
3 Vdd － Power supply ( +5.0 V )
4 Vo － Power supply for LCD driver
5 /WR I Write
When MPU I/F is 8080 series, this pin (WR) is used as data write, active low.
6 /RD I Read Enable
When MPU interface(I/F) is 8080 series, this pin (RD) is used as data read, active low.
7 /CS I Chip Select Input
8 RS I Command / Data Select Input
9 BUSY O Busy Signal Output
10 /RST I Reset Signal Input
11 DB0 I/O Data bus line
12 DB1 I/O Data bus line
13 DB2 I/O Data bus line
14 DB3 I/O Data bus line
15 DB4 I/O Data bus line
16 DB5 I/O Data bus line
17 DB6 I/O Data bus line
18 DB7 I/O Data bus line
19 NC — No connection
20 Vee — Negative voltage output

Mechanical Data

Mechanical Data

Item Dimension Unit
Number of dots 160 × 160 －
Module dimension 85.0 × 100.0 × 14.5 (MAX) mm
View area 62.0 × 62.0 mm
Active area 60.78 × 60.78 mm
Dot size 0.36 × 0.36 mm
Dot pitch 0.38 × 0.38 mm
Duty 1/160
Backlight Type LED
IC RA8806
Interface 8080 family



Absolute Maximum Ratings

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input voltage VIN -0.3 － VDD+0.3 V
Supply Voltage For Logic VDD-VSS -0.3 － 6.5 V



Electrical Characteristics

Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage For Logic VDD-VSS － 4.5 5.0 5.5 V
Supply Voltage For LCM VDD-V0 Ta=-20℃
Ta=25℃
Ta=70℃		 －
17.9
－		 －
18.4
－		 －
18.9
－		 V
V
V
Input High Volt. VIH － 0.8 VDD － VDD V
Input Low Volt. VIL － 0 － 0.2 VDD V
Output High Volt. VOH － VDD -0.4 － VDD V
Output Low Volt. VOL － 0 － VDD +0.4 V
Supply Current IDD VDD=5.0V － 26.3 40.0 mA
