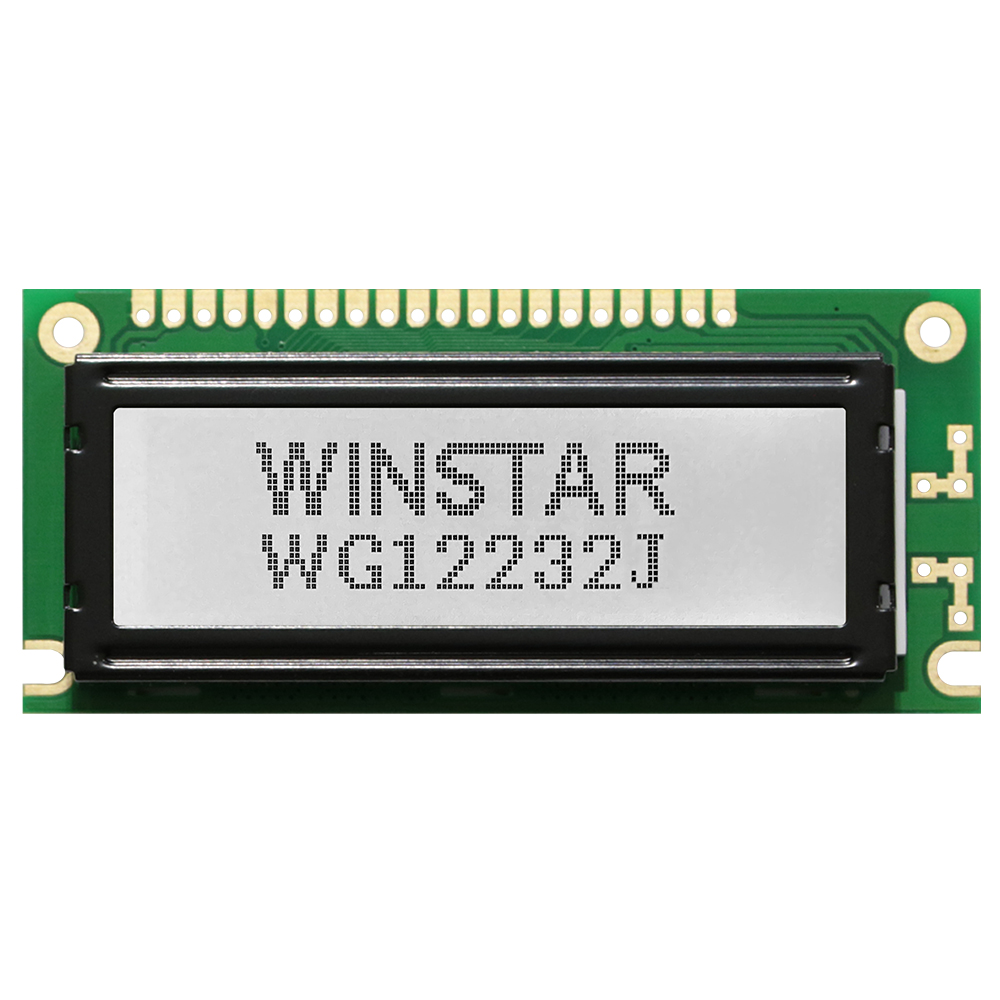

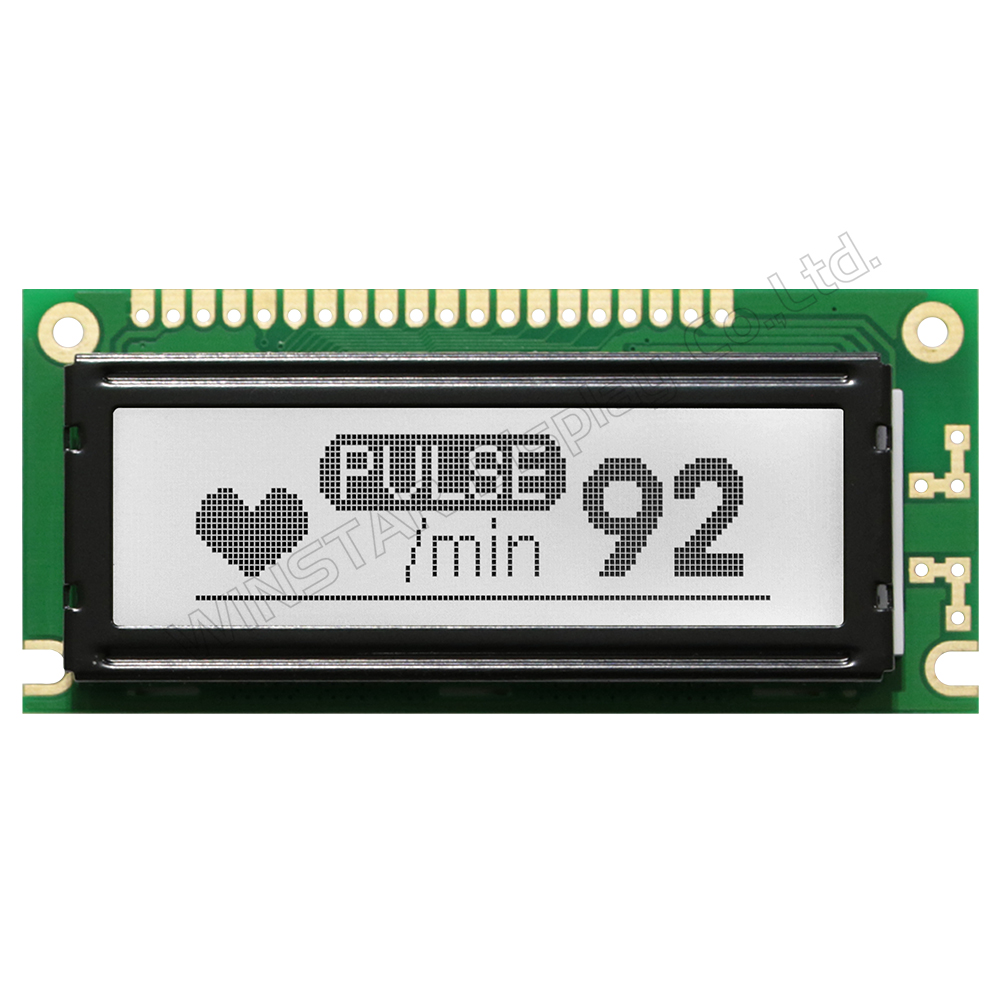

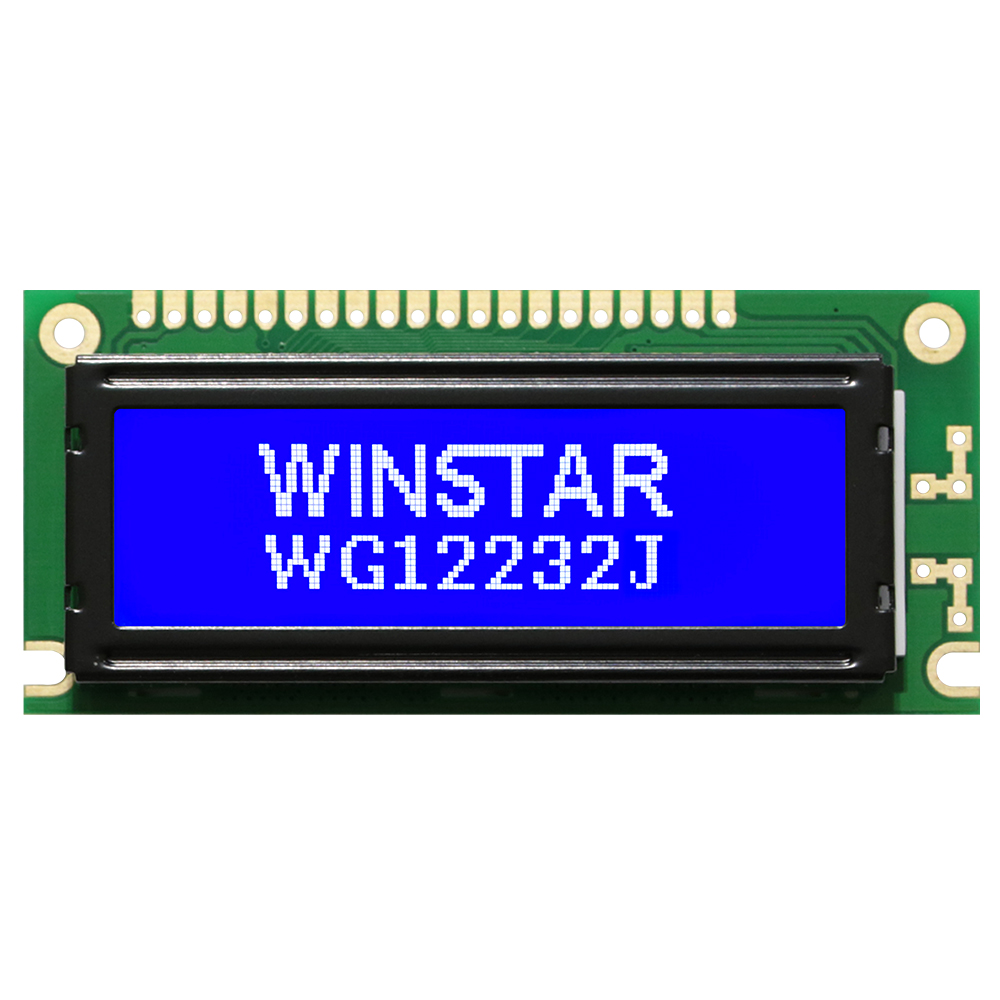

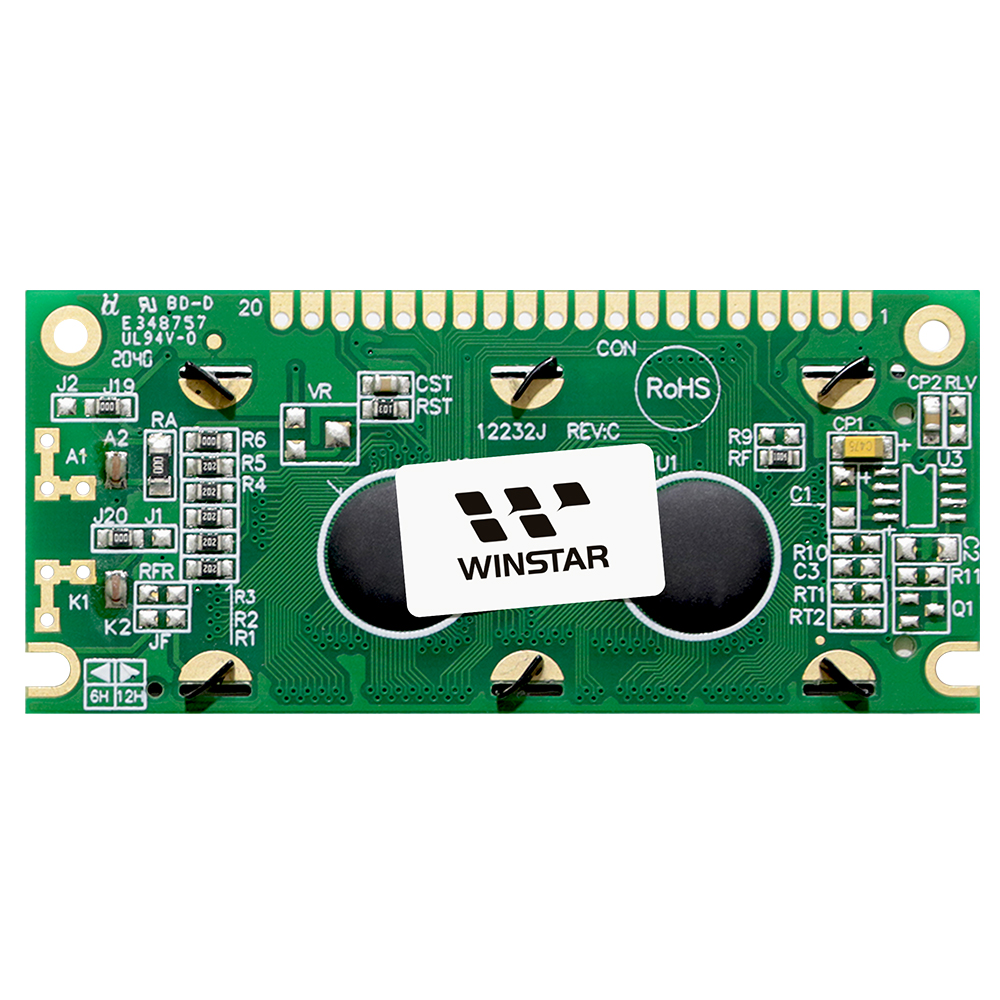

Graphic LCD Module 122×32

Model No. WG12232J

  • Graphic LCD 122×32
  • Available for external oscillation (E Type), internal oscillation (J Type) 2KHz
  • IC: SBN1661G
  • 1/32 duty cycle
  • Negative voltage optional for +3V power supply
  • Interface: 6800
Category:

Description

WG12232J is a 122×32 graphic LCD module which is built in with SBN1661G controller IC or equivalent controller.  This 122×32 LCD display supports 6800 8-bit parallel interface and 5V power supply. WG12232J also supports Negative Voltage 3V optional.  This display is built in with internal oscillation, please choose WG12232E if you need external oscillation.

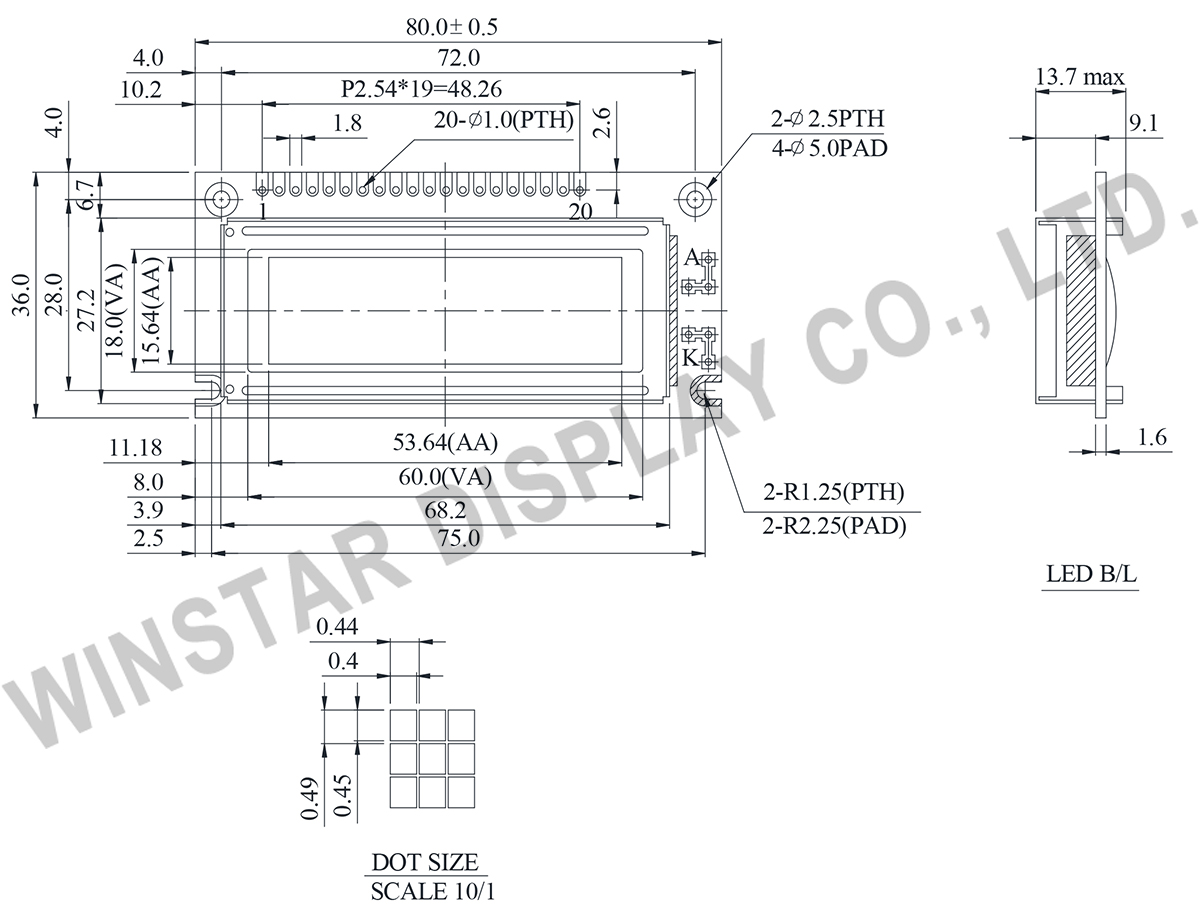

Drawing

Drawing


Data source ref:WG12232J-TFH-V#A

Specifications

Specifications

Interface Pin Function

Pin No. Symbol Level Description
1 Vss 0V GND
2 Vdd 3.0V Power supply for logic
3 Vo (Variable) Contrast  Adjustment
4 A0 H/L H : Data L : Instruction
5 E1 H/L Chip Enable for IC1
6 E2 H/L Chip Enable for IC2
7 NV － Negative Voltage option
8 NC H/L NO connection
9 R/ W H/L H : Read  data; L : Write data
10 DB0 H/L Data bus line
11 DB1 H/L Data bus line
12 DB2 H/L Data bus line
13 DB3 H/L Data bus line
14 DB4 H/L Data bus line
15 DB5 H/L Data bus line
16 DB6 H/L Data bus line
17 DB7 H/L Data bus line
18 RES H/L Reset the LCM
19 A LED +
20 K LED –

Mechanical Data

Mechanical Data

Item Dimension Unit
Number of dots 122 x 32 －
Module dimension 80.0 x 36.0 x 13.7(Max) mm
View area 60.0 x 18.0 mm
Active area 53.64 x 15.64 mm
Dot size 0.40 x 0.45 mm
Dot pitch 0.44 x 0.49 mm
Duty 1/32
Backlight Type LED
IC SBN1661G
Interface 6800



Absolute Maximum Ratings

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input voltage VI -0.3 － VDD+0.3 V
Supply voltage for Logic VDD-VSS -0.3 － +6.0 V
LCD bias voltage VLCD 3.5 － 13 V

Electrical Characteristics

Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage For Logic VDD-VSS － 2.7 3.3 3.6 V
Supply Voltage For LCM VDD-V0 Ta=-20℃
Ta=25℃
Ta=70℃		 －
4.2
－		 －
4.35
－		 －
4.5
－		 V
V
V
Input High Volt. VIH VDD=3.3V 2.7 3.3 VDD+0.5 V
Input Low Volt. VIL － 0 0.7 1.1 V
Output High Volt. VOH － VDD-0.3 － VDD V
Output Low Volt. VOL － 0 － 0.3 V
Supply Current IDD VDD=3.0V 1.2 1.5 1.8 mA
