High Brightness 10.1″ IPS MIPI TFT Display 1024×600 with PCAP

Model No. WF101JSYAHMNB0

Size : 10.1 inch
Resolution : 1024×600 dots
View Direction : IPS
Interface : MIPI DSI
Driver IC : EK79007AD3+EK73217BCGA
Control-Board : No
Brightness(cd/m2) : 900
Frame Through Hole : No
Touch Screen : Projected Capacitive Touch Panel (PCAP)
Detect Point : 5 Fingers

Categories: High Brightness TFT Display, TFT LCD

Description

WF101JSYAHMNB0 is a 10.1 inch MIPI DSI interface High Brightness 1024 x 600 IPS TFT-LCD module with projected capacitive touch panel (PCAP). This TFT module is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and high brightness of 900 nits (typical value). If customers don’t require high brightness, you can choose our WF101JTYAHMNB0. This WF101J MIPI model is also available in resistive touch screen options of WF101JTYAHMNT0 and WF101JSYAHMNT0 (high brightness).

WF101JSYAHMNB0 module is built-in with EK79007AD3 and EK73217BCGA driver ICs; it supports 4-Lanes MIPI (Mobile Industry Processor Interface) DSI (Display Serial Interface), as to the capacitive touch panel is built-in with ILI2511 IC which supports USB and I2C interface. The MIPI DSI interface becomes more popular because of the characteristics of High Speed Data Transmission and High Speed Clock Transmission. This TFT display module featured with glare surface panel; aspect ratio 16:9, it can be operated at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

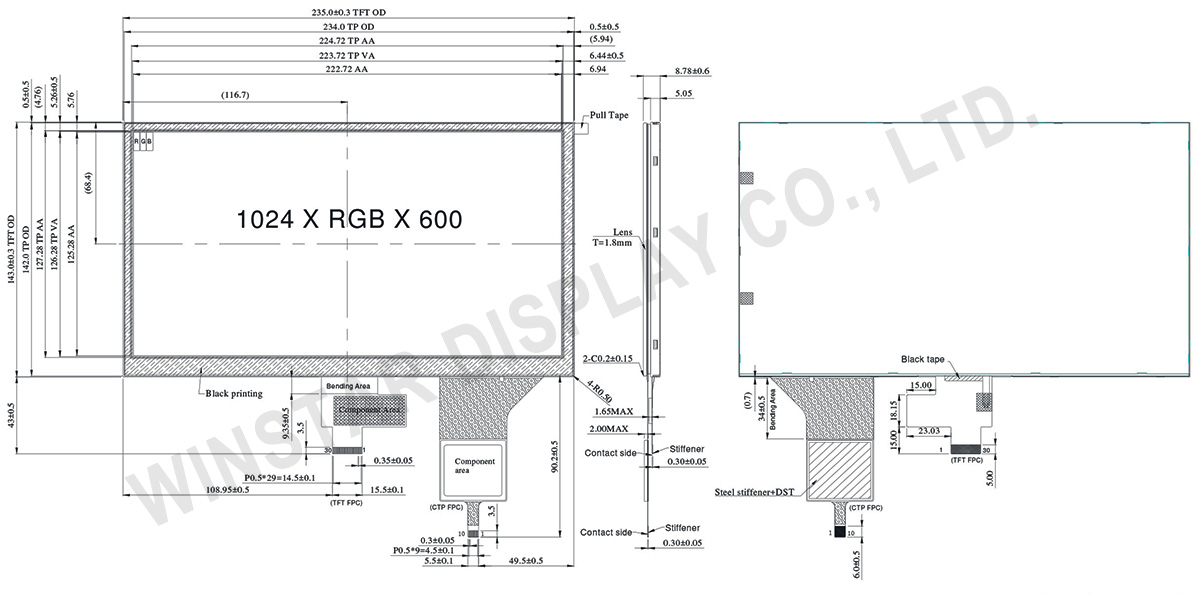

Drawing

Interface

TFT LCD Module

Pin No.	Symbol	Description
1	VLED+	LED Anode
2	VLED+	LED Anode
3	VGH	Positive power for TFT
4	VGL	Negative power for TFT
5	UPDN	Gate up or down scan control. UPDN = ”L”, STV2 output vertical start pulse and UD pin output logical “L” to Gate driver. (default) UPDN = ”H”, STV1 output vertical start pulse and UD pin output logical “H” to Gate driver
6	SHLR	Source right or left sequence control. SHLR = ”L“, shift left: last data = S1←S2←S3……….←S1536 = first data. SHLR = ”H“, shift right: first data = S1→S2→S3……..→S1536 = last data.(default)
7	VLED-	LED Cathode
8	VLED-	LED Cathode
9	AVDD	Analog power
10	GND	Digital ground
11	D3P	MIPI data input.
12	D3N	MIPI data input.
13	GND	Digital ground
14	D2P	MIPI data input.
15	D2N	MIPI data input.
16	GND	Digital ground
17	CLKP	MIPI clock input
18	CLKN	MIPI clock input
19	GND	Digital ground
20	D1P	MIPI data input.
21	D1N	MIPI data input.
22	GND	Digital ground
23	D0P	MIPI data input.
24	D0N	MIPI data input.
25	GND	Digital ground
26	STBYB	Standby mode. STBYB = ”H“,normal operation(default) STBYB = ”L”, timing controller, source driver will turn off, all output are GND.
27	RESET	Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability.
28	VDD (1.8V)	Digital power
29	VDD (1.8V)	Digital power
30	VCOMI	Common voltage

PCAP PIN Definition

Pin	Symbol	Function
1	USB_VSS	System ground
2	USB_VDD 5V	Power supply
3	USB_D+	Data +
4	USB_D-	Data –
5	VSS	System ground
6	SDA	I2C data input and output
7	SCL	I2C clock input
8	RST	External Reset, Low is active
9	INT	External interrupt to the host
10	VDDT 3.3	Power supply

General Specifications

Item	Dimension	Unit
Size	10.1	inch
Dot Matrix	1024 RGB x 600	dots
Module dimension	235(W) x 143(H) x 8.78(D)	mm
Active area	222.72 (H) x 125.28(V)	mm
Pixel pitch	0.2175(W) x 0.2088(H)	mm
LCD type	TFT, Normally Black, Transmissive
Interface	4-Lanes MIPI
Driver IC	EK79007AD3 + EK73217BCGA or equivalent
Viewing Angle	85/85/85/85
Aspect Ratio	16:9
Backlight Type	LED, Normally White
PCAP IC	ILI2511 or equivalent
PCAP Interface	USB (I2C available)
PCAP FW Version:	V6.0.0.0.62.90.1.2
Touch Panel	Projected Capacitive Touch Screen, PCAP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Conditions (At Ta = 25 °C,)

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Power Supply Voltage For LCD	VDD	1.71	1.8	1.89	V
Analog Power Supply Voltage	AVDD	9.89	10.2	10.5	V
Gate On Power Supply Voltage	VGH	19.4	20.0	20.6	V
Gate Off Power Supply Voltage	VGL	-10.3	-10.0	-9.7	V
Common Power Supply Voltage	VCOMI	4.0	4.3	4.6	V
Supply PCAP	VDDT	3.0	3.3	3.6	V
	IVDDT		90.5	115	mA
	USB_VDD 5V	4.4	5.0	5.5	V
	I VDD 5V	—	97.8	120	mA
