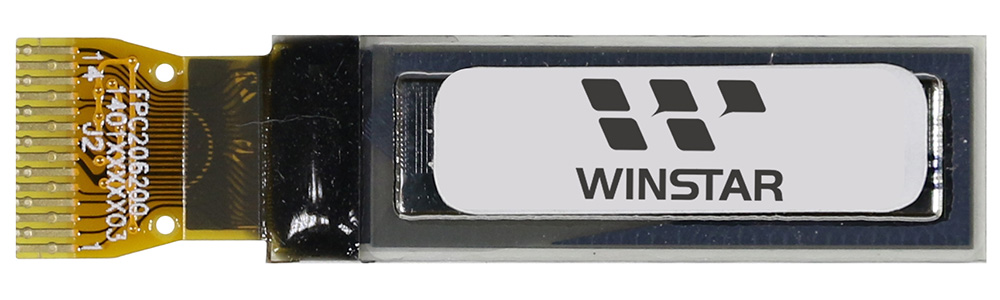

WEO009616A is a 0.84 inch Graphic passive matrix OLED display module which is made of 96×16 dots. This 0.84″ WEO009616A has the module dimension of 29.1× 9.2 × 1.45 mm and Active Area size 21.104×3.504 mm. WEO009616A is built in with SSD1306 IC, it supports I2C interface, 3V power supply. The WEO009616A is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it’s lightweight and low power consumption. This 0.84 inch small sized OLED display is suitable for wearable device, E-cigarette, MP3, personal care appliance, portable device, voice recorder pen, health device, etc. WEO009616A module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. Below is the basic specification of WEO009616A as reference.WEO009616A module supports internal Charge Pump supply and external VCC supply.
96×16 OLED Display 0.84
Model No. WEO009616A
- Type: Graphic (Without Frame)
- Structure: COG
- Size: 0.84 inch
- 96 x 16 Dot Matrix
- IC：SSD1306
- 3V Power supply
- 1/16 duty
- Interface: I2C

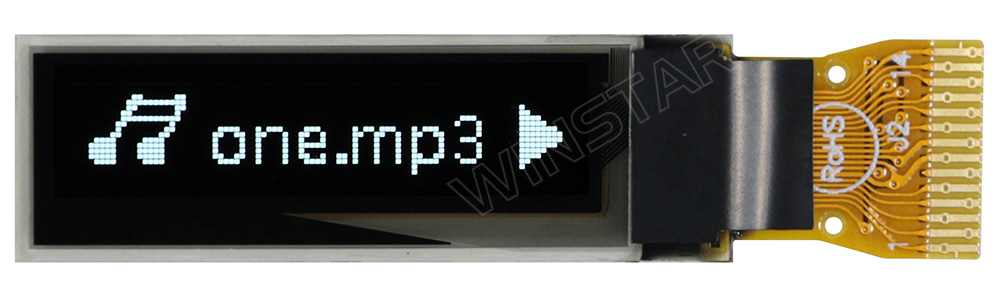

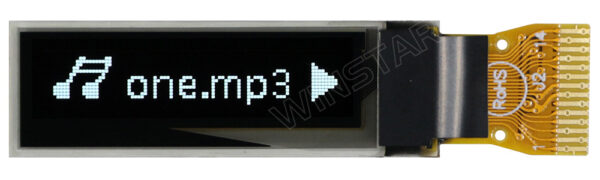

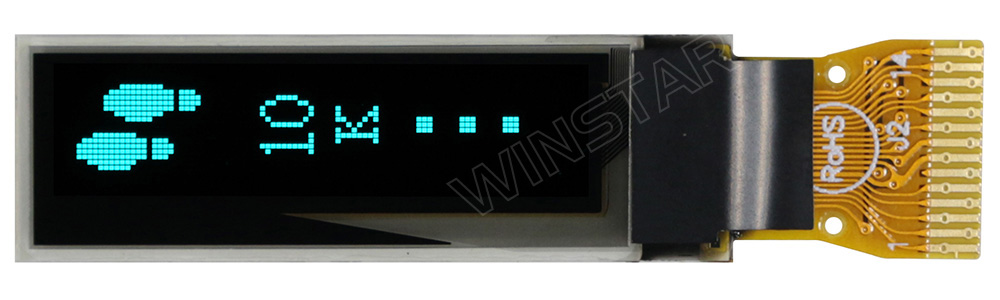

- Display Color: White / Yellow / Sky Blue
- Suitable for Wearable Device
Description

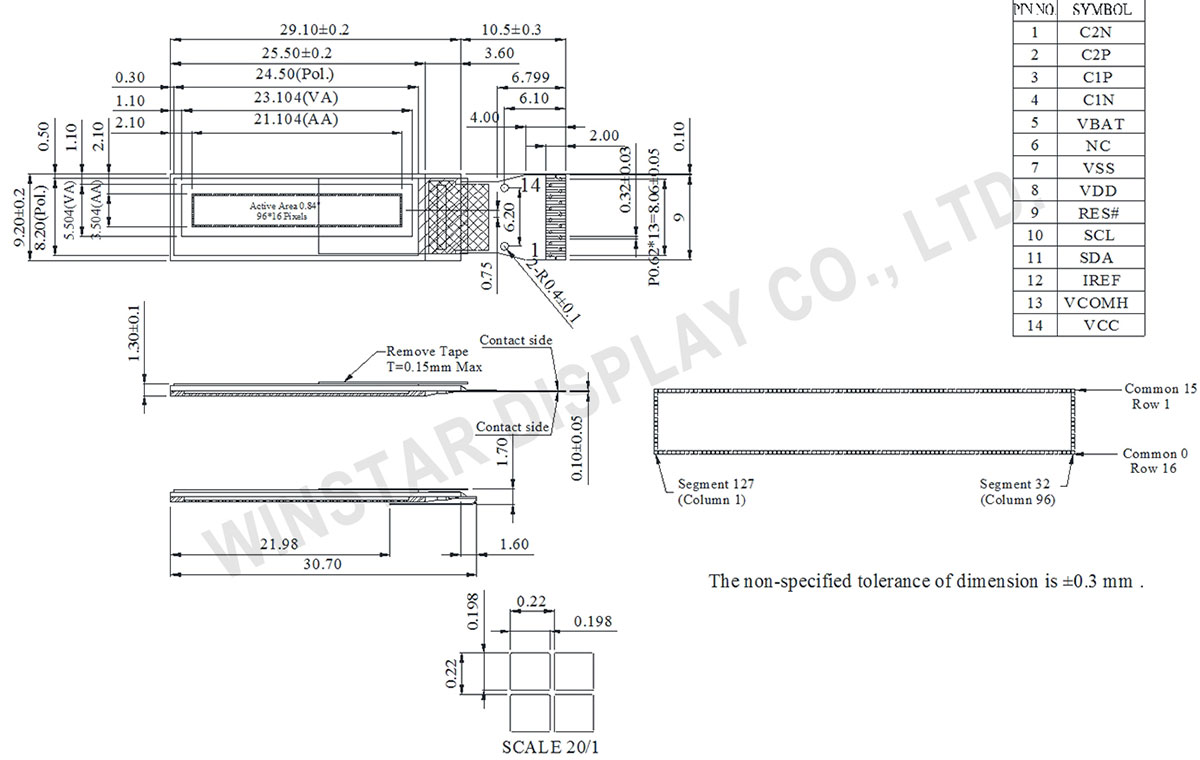

Drawing
Drawing
SPECIFICATIONS
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | C2N | Charge pump capacitor |
| 2 | C2P | Charge pump capacitor |
| 3 | C1P | Charge pump capacitor |
| 4 | C1N | Charge pump capacitor |
| 5 | VBAT | Charge pump capacitor |
| 6 | NC | No Connection |
| 7 | VSS | Ground Pin |
| 8 | VDD | Voltage for logic |
| 9 | RES# | Reset Signal Pin |
| 10 | SCL | Serial clock |
| 11 | SDA | Serial data |
| 12 | IREF | SEG Current Refer Pin |
| 13 | VCOMH | COM deselected level |
| 14 | VCC | Panel driving voltage |
Mechanical Data
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 29.10 × 9.20 | mm |
| Viewing area | 23.104 × 5.504 | mm |
| Active area | 21.104 × 3.504 | mm |
| Dot pitch | 0.22 × 0.22 | mm |
| Dot size | 0.198 × 0.198 | mm |
Electronical Characteristics
Electronical Characteristics
| Item | Symbol | Condition | Standard Value | Unit | ||
|---|---|---|---|---|---|---|
| Min | Typ | Max | ||||
| Supply Voltage | VDD | — | 2.8 | 3.0 | 3.3 | V |
