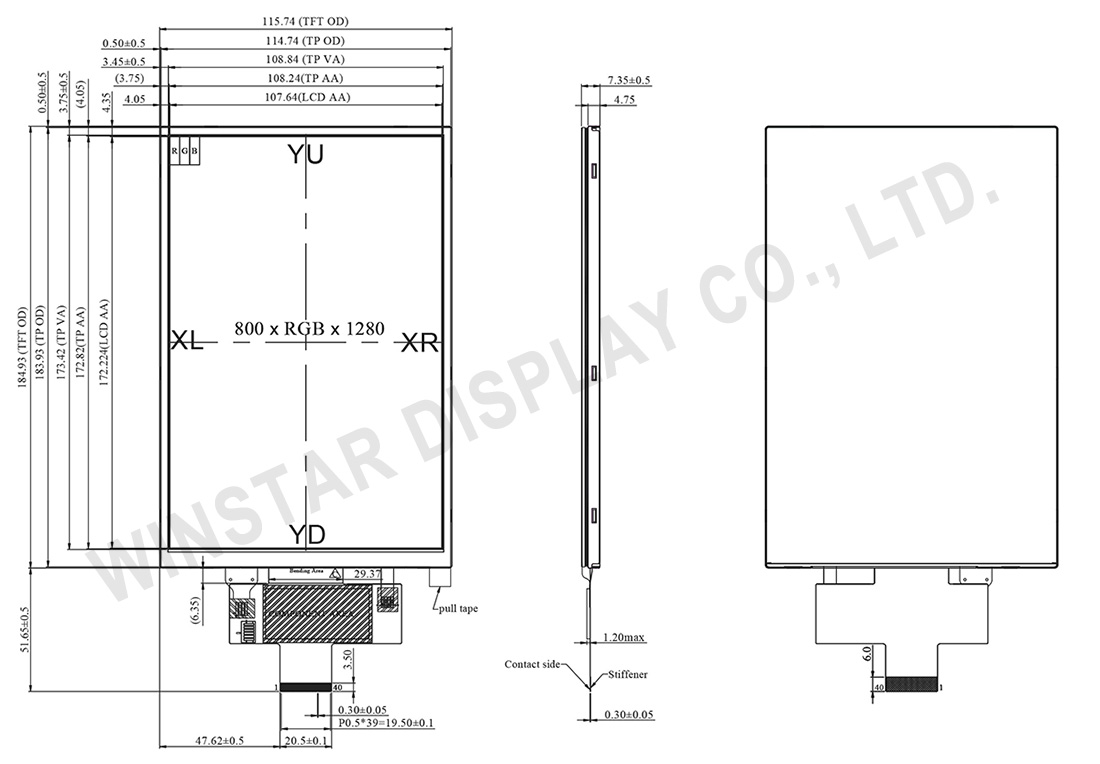

The WF80GSYAUMNT0 is an 8-inch vertical screen TFT-LCD display module with a resistive touch panel. It features a resolution of 800×1280 pixels, a high brightness of 750 nits (typical value), and a contrast ratio of 1500:1 (typical value). This TFT module supports the 4-Lanes MIPI DSI interface, offering advantages such as low power consumption, a high transmission rate, support for multiple data-encoding formats, and low noise and interference.
The WF80GSYAUMNT0 module utilizes IPS panel technology, providing relatively wide viewing angles of left: 85/right: 85/up: 85/down: 85 degrees (typical value). It incorporates an anti-glare surface with an aspect ratio of 10:16.
The display is integrated with the ILI9881C driver IC. The analog circuit of the power supply operates within the range of 3.0V~3.6V, with a typical value of 3.3V. Operating temperatures range from -20℃ to +70℃, and storage temperatures range from -30℃ to +80℃. The WF80GSYAUMNT0 8-inch display finds wide applications, especially in vertical screen orientations suitable for vending machines, ship control panels, home surveillance systems, and smart door locks.
