7 inch TFT LCD 800×480 with Controller Board

Model No. WF70C4TIBGDAN0

Size : 7 inch
Resolution : 800 x 480 dots
View Direction : 12H
Interface : MCU
Controller IC：SSD1963
Control Board : Yes
Brightness(cd/m2): 500
Frame Through Hole : Yes
Touch Panel : No

Categories: TFT LCD, TFT Panel + Controller Board

Description

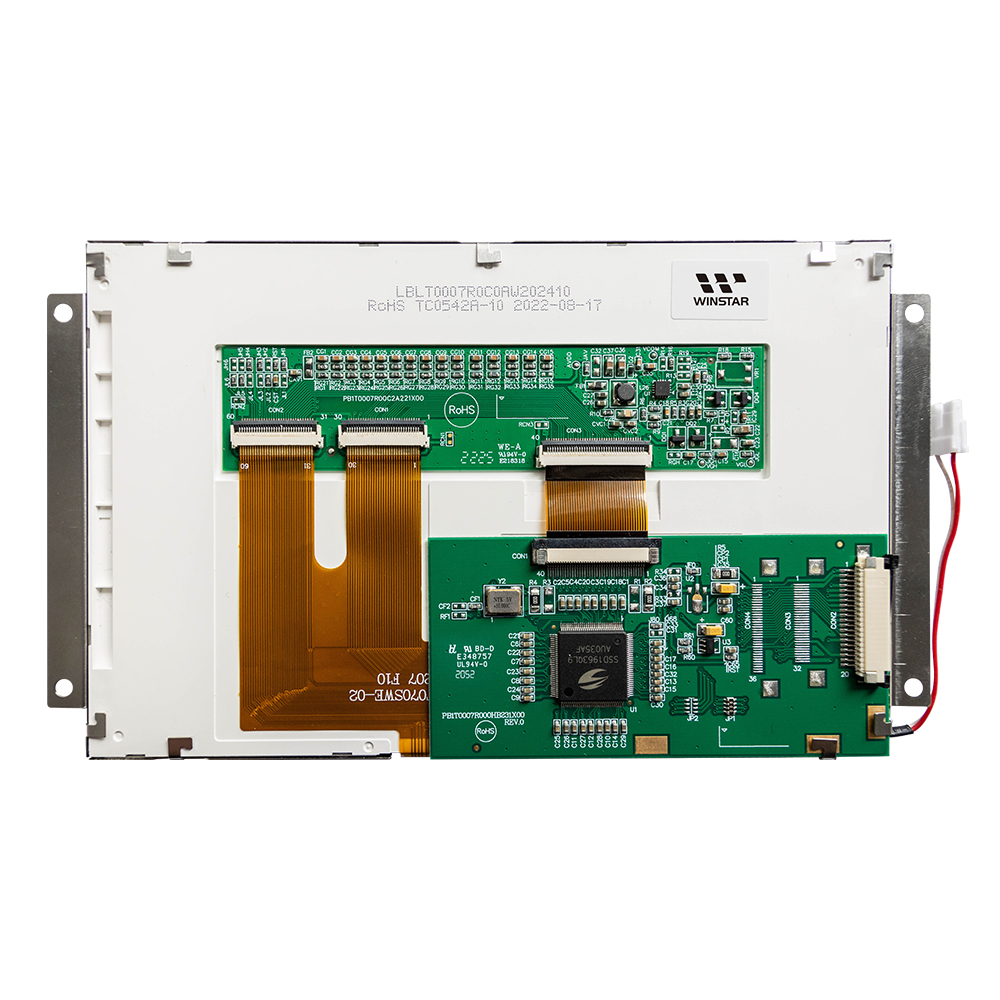

WF70C4TIBGDAN0 is a 7-inch TFT LCD module with a controller board, resolution WVGA 800×480 pixels. This TFT model is built-in with SSD1963 IC and supports 8080 MPU (8bit Parallel) interface, view direction of 12 o’clock, gray scale inversion of 6 o’clock, aspect ratio of 16:9, contrast ratio of 1000:1 (typical value), brightness of 500 nits (typical value), anti-glare surface panel.

The supply voltage for LCM (VDD) of WF70C4TIBGDAN0 is from 3.0V to 3.6V, with the typical value of 3.3V. It can be operated at temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃. The WF70C4 series is an alternative solution for the WF70H series, which has been End-of-Life (EOL). For more details, please contact our sales persons.

Drawing

SPECIFICATIONS

Interface

LCM PIN Definition

Pin	Symbol	Description
1	GND	Power Ground
2	VDD	Power Supply : +3.3V
3	NC	No connect
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7	DB0	Data bus
8	DB1	Data bus
9	DB2	Data bus
10	DB3	Data bus
11	DB4	Data bus
12	DB5	Data bus
13	DB6	Data bus
14	DB7	Data bus
15	CS	Chip select
16	NC	No connect
17	NC	No connect
18	RST	Hardware reset
19	NC	No connect
20	NC	No connect

Backlight Driving Part

Pin No.	Symbol	Description
1	VLED+	Red, LED_ Anode
2	VLED-	White, LED_ Cathode

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480(TFT)	dots
Module dimension	181.2(W) x 105.40(H) x 9.7(D)	mm
Active area	152.4 x 91.44	mm
Pixel pitch	0.1905x 0.1905	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o’clock
Gray Scale Inversion Direction	6 o’clock
Aspect Ratio	16:9
Backlight Type	LED,Normally White
Controller IC	SSD1963
Interface	Digital 8080 family MPU( 8bit Parallel )
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	–	3.0	3.3	3.6	V
Supply Current For LCM	IDD	Black Pattern	－	160	240	mA

LED driving conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit
LED current	–	–	160	200	mA
Power Consumption	VBL+=9.8V	–	1568	–	mW
LED voltage	VBL+	8.4	9.8	11	V
LED Life Time	–	–	50,000	–	Hr
