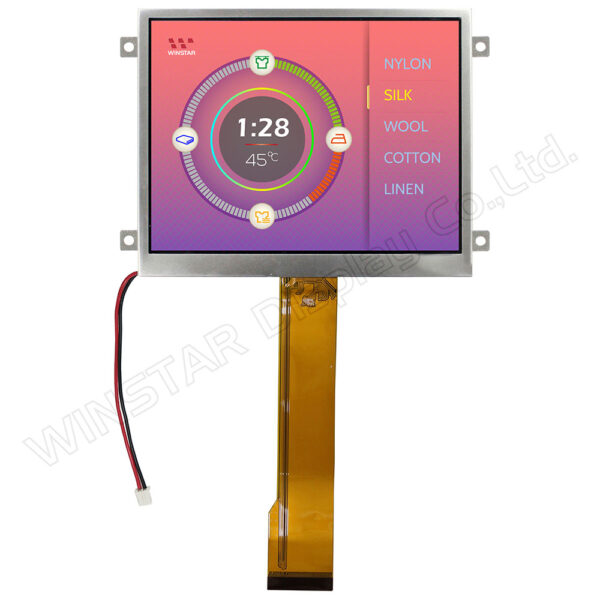

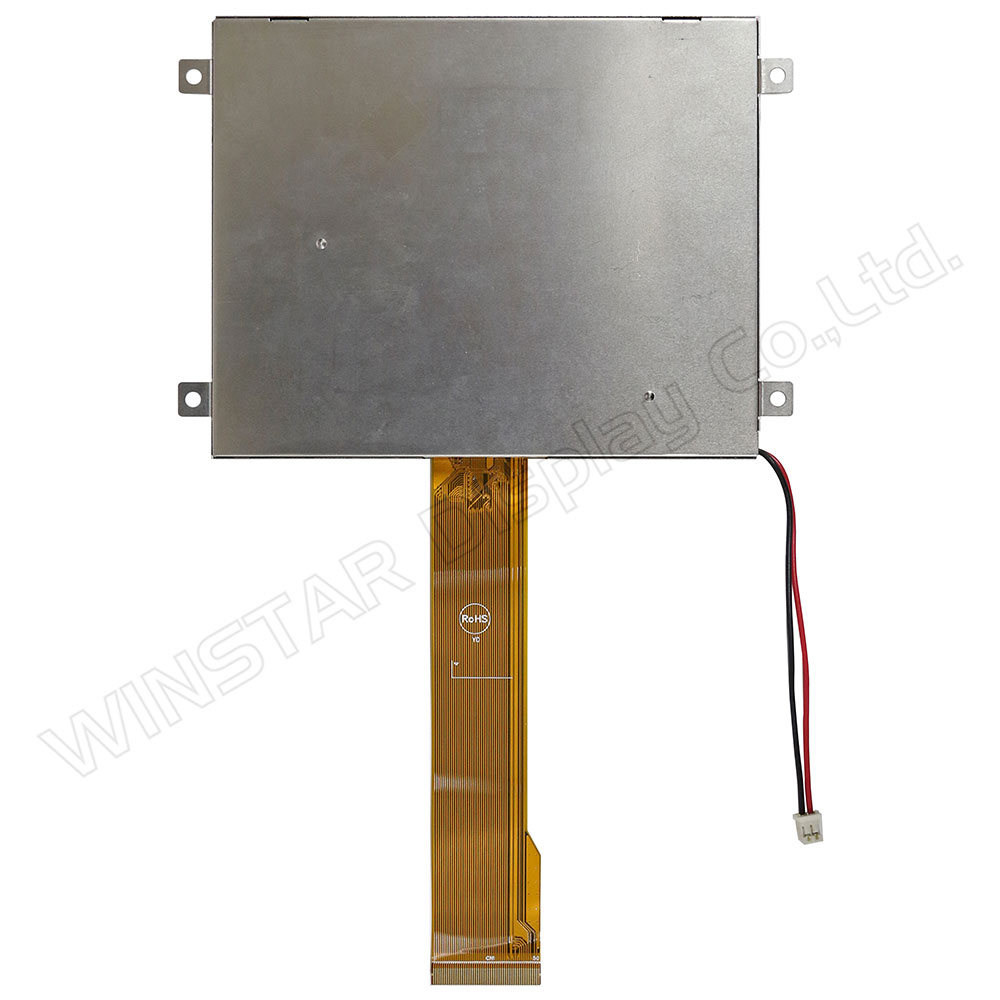

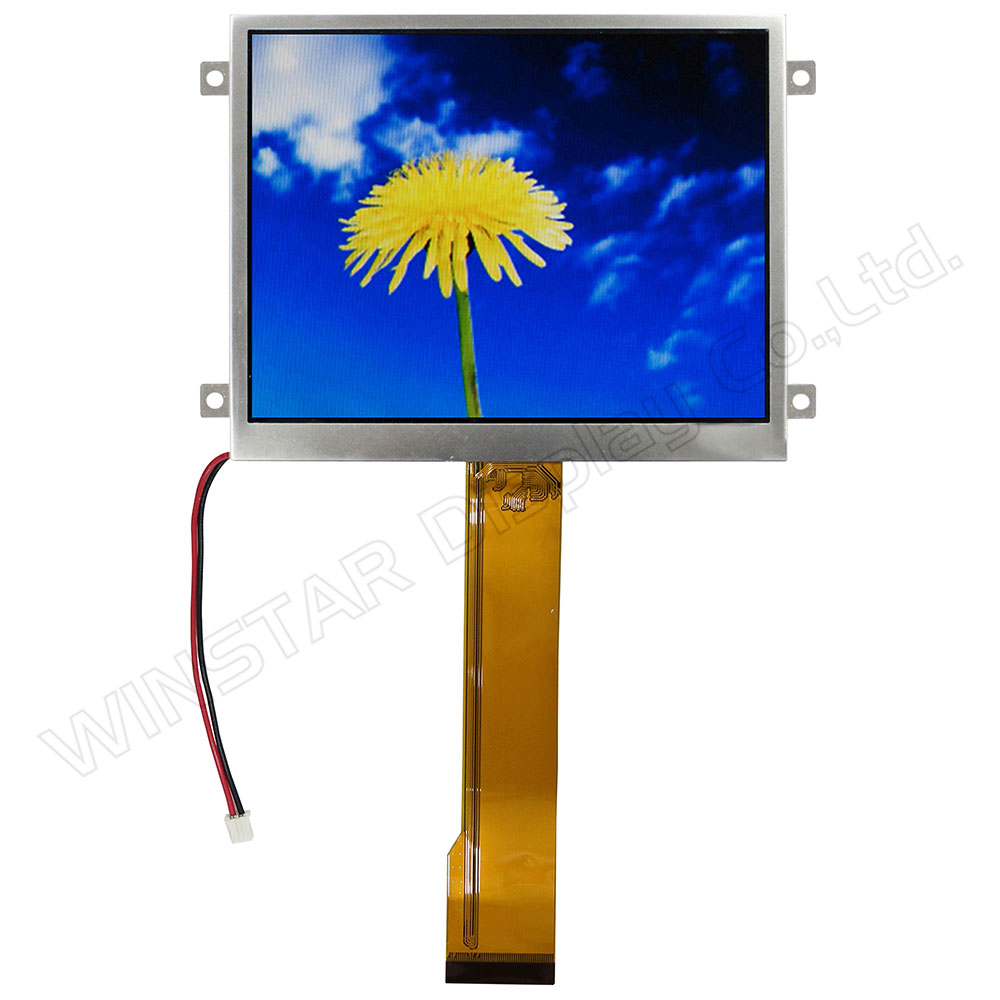

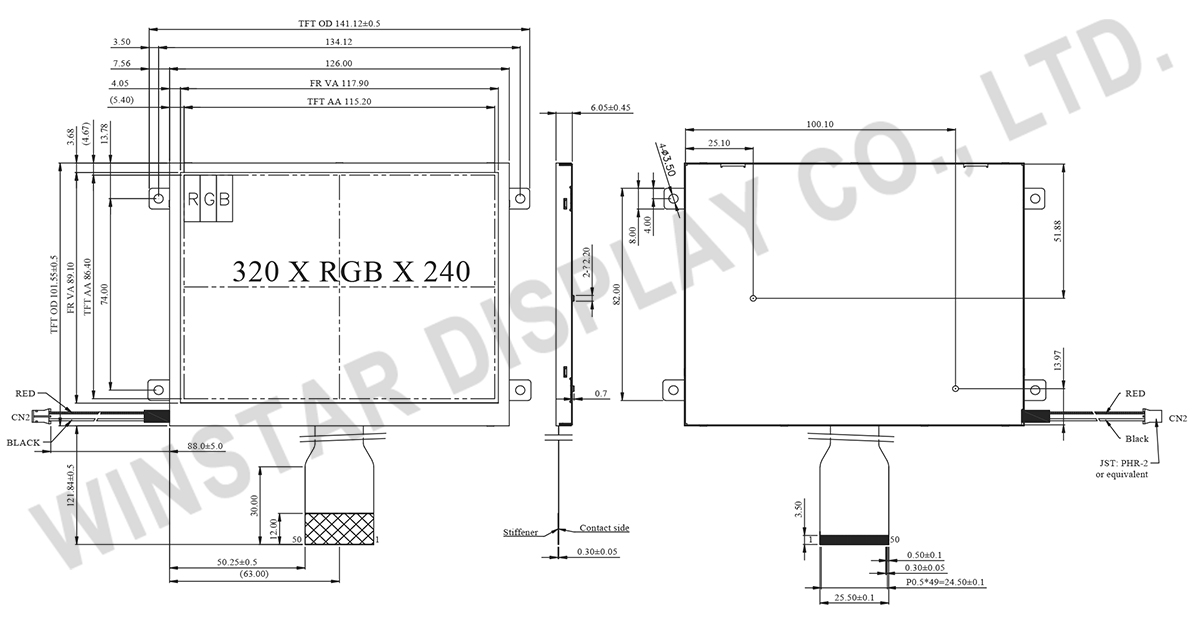

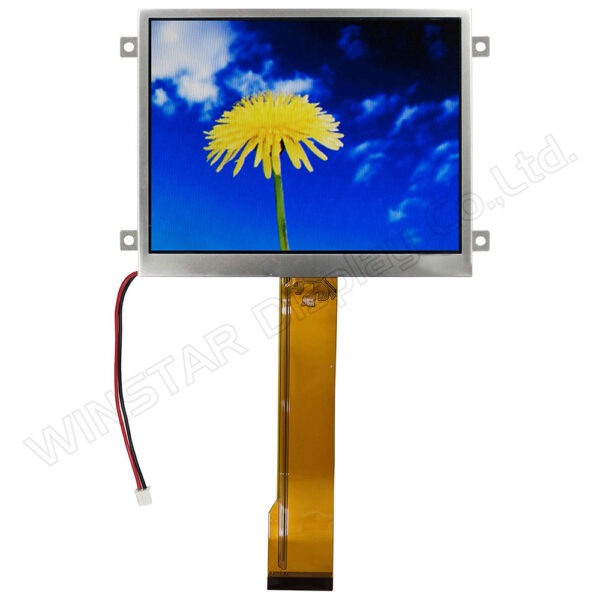

WF57ZTIGCDNN0 is a 5.7-inch standard TFT LCD display module designed to meet various industry needs. With a resolution of 320×240 dots and an aspect ratio of 4:3, this module provides clear visuals for a range of applications. Measuring at module dimensions of 141.12 × 101.55 mm, with an active area of 115.2×86.40 mm, and equipped with 4 screw holes and a metal frame, installation is swift and secure.
Powered by a logic supply voltage ranging from 3.2 V to 3.4 V (typical value: 3.3 V), this TFT display module integrates HX8218 and HX8615 driver ICs, supporting a 24-bit RGB Interface. With a brightness of 900 cd/m2 and a contrast ratio (typical value) of 300:1, the WF57ZTIGCDNN0 TFT LCD panel ensures excellent visibility in various lighting conditions.
WF57ZTIGCDNN0 has a 12 o’clock viewing direction and a 6 o’clock gray scale inversion, ensuring optimal display performance. Operating temperature ranges from -20 to +70℃, with a storage temperature spanning from -30 to +80℃, ensuring durability in diverse environmental conditions.
Key Applications:
Navigation Devices: Ideal for GPS units and marine chartplotters, providing clear navigation maps.
Mixing Consoles: Perfect for professional audio mixing in studios, concert venues, and broadcast facilities.
Medical Monitoring Equipment: Suited for blood pressure monitors and physiological monitors in hospitals and clinics.
Industrial Control Panels: Well-adapted for control panels in factories, production lines, and machinery.
Retail POS Systems: Suitable for POS systems, displaying product information and transaction details.
Home Automation Panels: Enables monitoring and control of smart home devices with ease.
