5.7″ Resistive Touch Panel TFT LCD Module

Model No. WF57ZTIGCDNN0

Size : 5.7 inch
Resolution : 320 x 240 dots
View Direction : 12H
Interface : RGB
Driver IC：HX8218+HX8615
Control-Board : Option
Brightness(cd/m²): 600
Frame Through Hole : Yes
Touch Screen : Resistive Touch Panel
O-Film : Option

Categories: Standard TFT Color Display, TFT LCD

Description

The WF57ZTIGCDNT0 is a 5.7-inch standard TFT LCD display module featuring a resistive touch panel designed to meet various industry needs. With a resolution of 320×240 dots and an aspect ratio of 4:3, this module provides clear visuals for a wide range of applications. Measuring at module dimensions of 141.12 × 101.55 mm, with an active area of 115.2×86.40 mm, and equipped with 4 screw holes and a metal frame, installation is swift and secure.

Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality. The operating temperature of the display covers from -20℃ to +70℃, with a storage temperature ranging from -30℃ to +80℃.

Powered by a logic supply voltage ranging from 3.2 V to 3.4 V, with a typical value of 3.3V, this TFT display module features HX8218 and HX8615 driver ICs, supporting a 24-bit RGB interface. With a brightness of 600 cd/m² and a contrast ratio (typical value) of 300:1, reflections are minimized, ensuring superior image quality.

Key Applications:
Industrial Control Panels: Well-adapted for control panels in factories, production lines, and machinery.
Navigation Devices: Ideal for GPS units and marine chart plotters, providing clear navigation maps.
Mixing Consoles: Perfect for professional audio mixing in studios, concert venues, and broadcast facilities.
Medical Monitoring Equipment: Suited for blood pressure monitors and physiological monitors in hospitals and clinics.
Retail POS Systems: Suitable for POS systems, displaying product information and transaction details.
Home Automation Panels: Enables monitoring and control of smart home devices with ease.

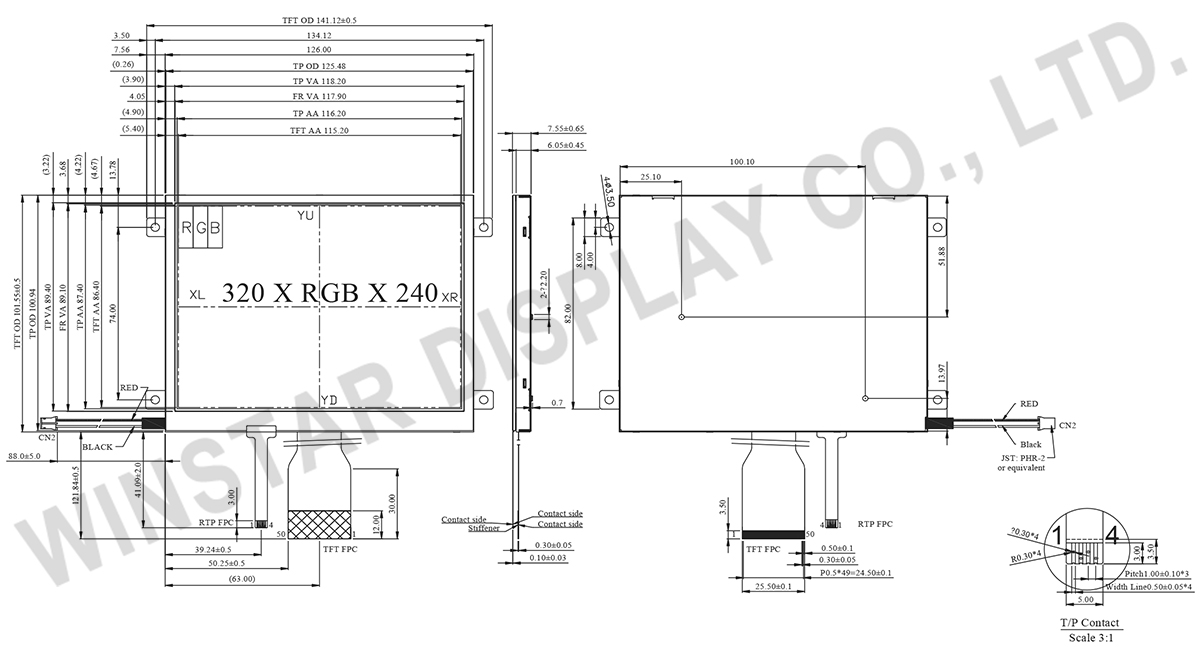

Drawing

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	IF1	Input data format control
2	IF2	Input data format control
3	POL	Polarity Signal connect to VCOM driving circuit.
4	RESET	Hardware reset
5	SPENA	Chip select
6	SPCL	Serial Clock
7	SPDA	Serial Data
8	B0	Blue Data bit
9	B1	Blue Data bit
10	B2	Blue Data bit
11	B3	Blue Data bit
12	B4	Blue Data bit
13	B5	Blue Data bit
14	B6	Blue Data bit
15	B7	Blue Data bit
16	G0	Green Data bit
17	G1	Green Data bit
18	G2	Green Data bit
19	G3	Green Data bit
20	G4	Green Data bit
21	G5	Green Data bit
22	G6	Green Data bit
23	G7	Green Data bit
24	R0	Red Data bit
25	R1	Red Data bit
26	R2	Red Data bit
27	R3	Red Data bit
28	R4	Red Data bit
29	R5	Red Data bit
30	R6	Red Data bit
31	R7	Red Data bit
32	Hsync	Horizontal synchronous signal
33	Vsync	Vertical synchronous signal
34	Data CLK	Dot data clock
35	AVDD(analog)	Analog power: 4.5V~5.5V
36	AVDD(analog)	Analog power: 4.5V~5.5V
37	VCC(Digital)	Digital power: 3V~3.6V
38	VCC(Digital)	Digital power: 3V~3.6V
39	NPC	NTSC/PAL mode Auto detection result H:NTSC/L:PAL
40	VGL	Gate off power
41	VGL	Gate off power
42	UD	Up/down selection
43	VGH	Gate on power
44	LRC	Shift direction of device internal shift register control.
45	GND	System ground pin of the IC. Connect to system ground.
46	VCOM	VCOM driving input
47	VCOM	VCOM driving input
48	ENB	Signal to settle the horizontal display position
49	GND	System ground pin of the IC. Connect to system ground.
50	GND	System ground pin of the IC. Connect to system ground.

General Specifications

Item	Dimension	Unit
Size	5.7	inch
Dot Matrix	320 × RGB × 240 (TFT)	dots
Module dimension	141.12(W) × 101.55(H) × 7.55(D)	mm
Active area	115.2 × 86.40	mm
Dot pitch	0.12 × 0.36	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o’clock
Gray Scale Inversion Direction	6 o’clock
TFT Drive IC	HX8218+HX8615 or Equivalent
Interface	24-bit RGB
Aspect Ratio	4:3
Backlight Type	LED, Normally White
Touch Panel	Resistive touch panel (RTP)
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	－	3.2	3.3	3.4	V
Input High Volt.	V_IH	－	0.7 Vcc	－	Vcc	V
Input Low Volt.	V_IL	－	0	－	0.3 Vcc	V
LCD Driving Supply Voltage	V_GH x 1	Ta=25℃	15	16	17	V x 3
	V_GL x 2		-6	-5	-4
	VcomH		–	4.5	–
	VcomL		–	-0.5	–
Supply Current	I_VCC	VCC=3.3V	–	30	45	mA
