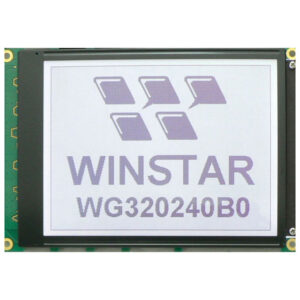

320×240 LCD Module

Model No. WG320240BX

  • Graphic 320×240 LCD Module
  • IC: S1D13700
  • Built-in Negative voltage generator
  • 1/240 duty cycle
  • Touch screen option (analog type)
  • Temperature compensation option
  • Interface: 6800/8080
  • ZIF Connector (CN-FPC), 20 pins
Category:

Description

WG320240BX is a STN monochrome Graphic 320×240 LCD module display which is having the module dimension of 160×109 mm and AA size of 115.18×86.38 mm, diagonal size 5.7 inch.  This WG320240BX LCD display is built in with S1D13700 controller; it communicates via 6800/8080 8-bit parallel interface; 5V power supply and build in negative voltage generator and temperature compensation optional and touch panel optional.  There are three PCB versions for WG320240BX series:

  • WG320240BX: ZIF connector (CN-FPC), 20 pins
  • WG320240BP2: DIP connection, 20 pins
  • WG320240BP3: with touch panel driver, ZIF connector, 26 pins

Drawing

Drawing


Data source ref:WG320240BX-TFH-VZ#

Specifications

Specifications

Interface Pin Function

Pin No. Symbol Level Description
1 VSS 0V Ground
2 VDD 5.0V Power supply for Logic
3 V0 (Variable) Driving voltage for LCD
4 A0 H/L RD=L WR=H ,A0=L :Data Read  AO=H :Status read
RD=H WR=L ,A0=L :Data Write  AO=H :Command write
5 WR H/L 8080 family: Write signal, 6800 family: R/W signal
6 RD H/L 8080 family: Read signal, 6800 family: Enable clock
7~14 DB0~DB7 H/L Data bus line
15 CS H/L Chip select ,Active L
16 RES H/L Controller reset signal, Active L
17 Vee — Negative Voltage Output
18 NC No connection
19 FG — Frame Ground
20 WAIT — Check Busy

Mechanical Data

Mechanical Data

Item Dimension Unit
Number of dots 320 x 240 －
Module dimension 160.0 x 109.0 x 13.0(Max) mm
View area 122.0 x 92.0 mm
Active area 115.18 x 86.38 mm
Dot size 0.34 x 0.34 mm
Dot pitch 0.36 x 0.36 mm
Duty 1/240
Backlight Type LED
IC S1D13700
Interface 8080

Absolute Maximum Ratings

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VIN -0.3 － VDD+0.5 V
Output Voltage VOUT -0.3 － VDD+0.5 V
Supply Voltage For Logic VDD-VSS 0 － 6.5 V
Supply Voltage For LCD VDD-V0 0 － 32 V

Electrical Characteristics

Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage For Logic VDD-VSS － 4.5 5.0 5.5 V
Supply Voltage For LCD VDD-V0 Ta=-20℃
Ta=25℃
Ta=70℃		 －
23.0
22.2		 －
23.6
－		 26.1
24.2
－		 V
V
V
Input High Volt. VIH － 3.5 － － V
Input Low Volt. VIL － － － 1.0 V
Output High Volt. VOH － VDD-0.4 － － V
Output Low Volt. VOL － － － 0.4 V
Supply Current IDD VDD=5.0V 35.0 65.0 110.0 mA

Search keyword: 320×240 lcd, 320 x 240 lcd, lcd 320×240, lcd 320 x 240
