22mm Anti-vandal Pushbutton Switches

MPB22 Series

22mm Metal Switches

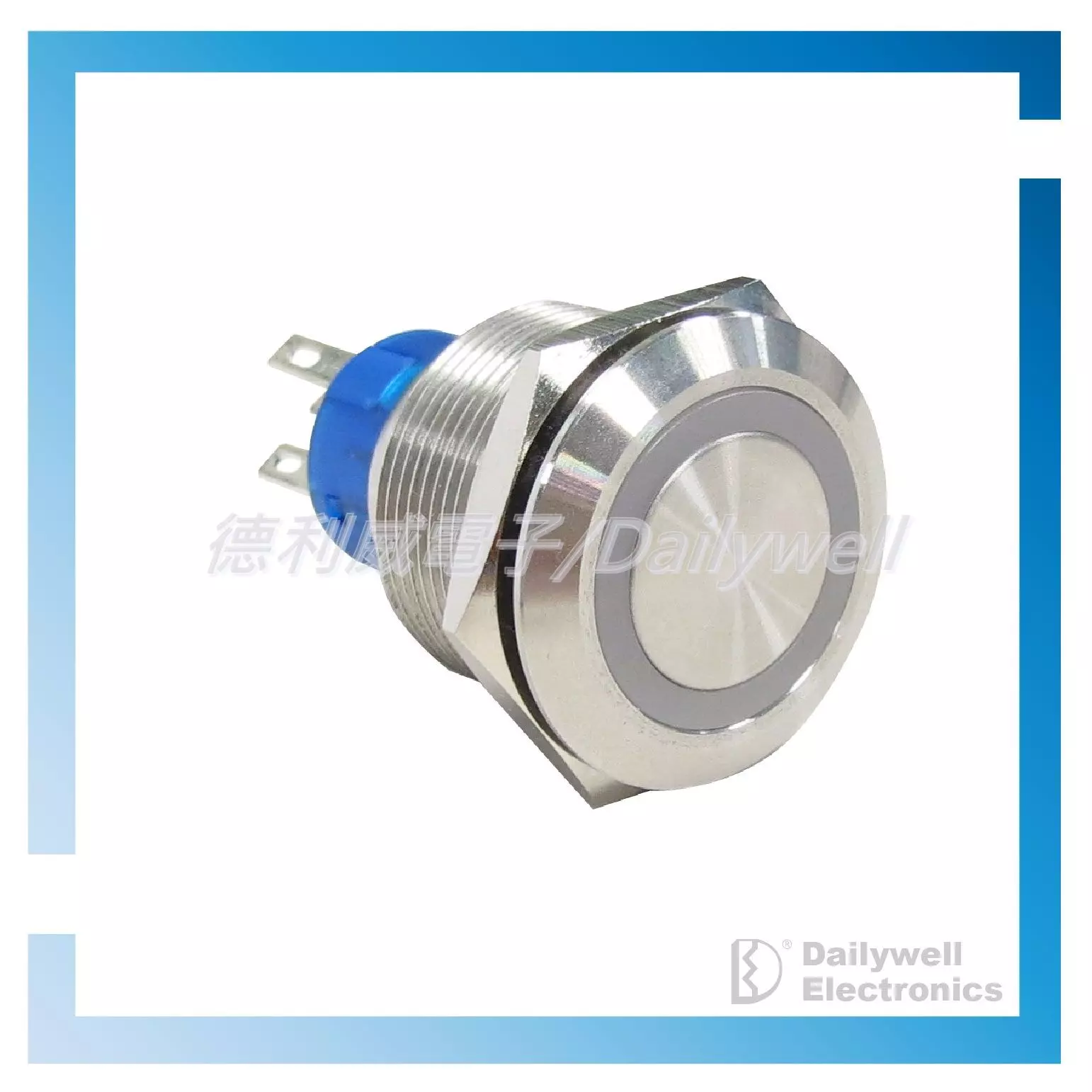

Dailywell MPB22 series illuminated anti-vandal switches is UL certified, offering a rating of 3A/250VAC; 3A/28VDC. This switches comply with IP67 standards and has a long operating life up to 1,000,000 life cycles (momentary) and 500,000 (latching).

It has ring illumination, many LED color options, multiple voltage options, and your choice of gold or silver contacts.

The MPB22 series illuminated anti-vandal switches comes with a 22mm panel cutout size and SPDT or DPDT function.

Categories: Anti-vandal Switches, Switches

Description

MPB22 Series

22mm Metal Switches

It has ring illumination, many LED color options, multiple voltage options, and your choice of gold or silver contacts.

The MPB22 series illuminated anti-vandal switches comes with a 22mm panel cutout size and SPDT or DPDT function.

SPEC

Specifications	Rating	Electrical life	Mechanical life	Insulation resistance	Dielectric strength	Contact resistance	Travel	Operation pressure	Torque
MPB22	Ith 5A/250VAC. resistive load 3A/250VAC	50,000 make-and-break cycles at full load.	Momentary 1,000,000. / Self-lock 500,000	1,000MΩ MIN AT 500VDC	2,000V sea level 2,000V sea level	50mΩ MAX.@1A 12VDC (initial value)	About 3.2mm.	1Pole 1.5 ~ 2.5N. / 2Pole 2.2 ~ 3.5N	5 ~ 14Nm.

SPECIFICATIONS

Rating：Ith 5A/ 250VAC resistive load 3A/250VAC.
Contact Resistance：50mΩmax. @ 1A 12VDC (initial value).
Insulation Resistance：1, 000 MΩ min. at 500VDC.
Dielectric Strength：2, 000V RMS @ sea level.
Operation Temperature：-20°C to 55°C.
Electrical life：50, 000 make-and-break cycles at full load.
Mechanical life：Momentary 1, 000, 000 cycles / Self-lock 500, 000 cycles.
Torque：5~14Nm.
Operation pressure：1Pole 2.5± 1N / 2Poles 3.5± 1N.
Travel：About 3.2mm.
Ingress Protection：IP67, IK10(Stainless).

Materials

BUSHING : Stainless Steel / Aluminum alloy.
BASE : PBT(UL 94-V0), PC(UL 94-V2).
ACTUATOR : PC; Stainless Steel / Aluminum alloy.
INNER ASSEMBLY : POM / PA66.
SPRING : Spring steel.
SEALING : Silicone.
O-Ring : Silicone.
TERMINAL : Brass, with silver or gold plated.
CONTACT :
Q=Copper, Silver plated.
R=Brass, Coin silver, Gold plated.
HEX NUT : Nickel plated brass.

Applications

Industrial control instruments, Medical equipment, Security monitoring equipment, Vehicle peripherals, Audio-visual equipment and Energy storage equipment.

‧Metal Switch Series – Quick Terminal Connector

Be designed it more flexible for users wiring requirements, Dailywell provides quick-connect terminal connector for your option.

Metal dimension available for 19mm, 22mm, 25mm.

MPB quick connective assembly

Carving symbol catalogue for 19/22/25 anti-vandal switches
