2.23 inch OLED Graphic 128×32

Model No.WEP012832A

  • Type: Graphic
  • Structure: COG + Frame + PCB
  • Size: 2.23 inch
  • 128 x 32 Dot Matrix
  • IC：SSD1305
  • 3V Power supply
  • 1/32 duty
  • Interface: 6800, 8080, SPI, I2C
  • Display Color: White / Yellow / Blue
Categories: ,

Description

Winstar released a new COG with PCB OLED WEP012832A model; it is 2.23″ diagonal made of 128×32 pixels, it’s very readable due to the high contrast and bigger size of OLED display. The module is built in with SSD1305 IC, it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for Logic from 3V ~ 5V.

The WEP012832A is a COG with PCB OLED display which is having a 1×20 pin header and a 1×8 pin header on module, also having mounting holes on PCB board.  We provide a mini vibration motor and buzzer optional for this WEP012832A module. Also, customers can choose Hot Bar Soldering or metal pins with FPC and connector (part no. will be different) for your applications.

This 2.23 inch OLED module is suitable for smart home application, medical device, smart control, etc. WEP012832A module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

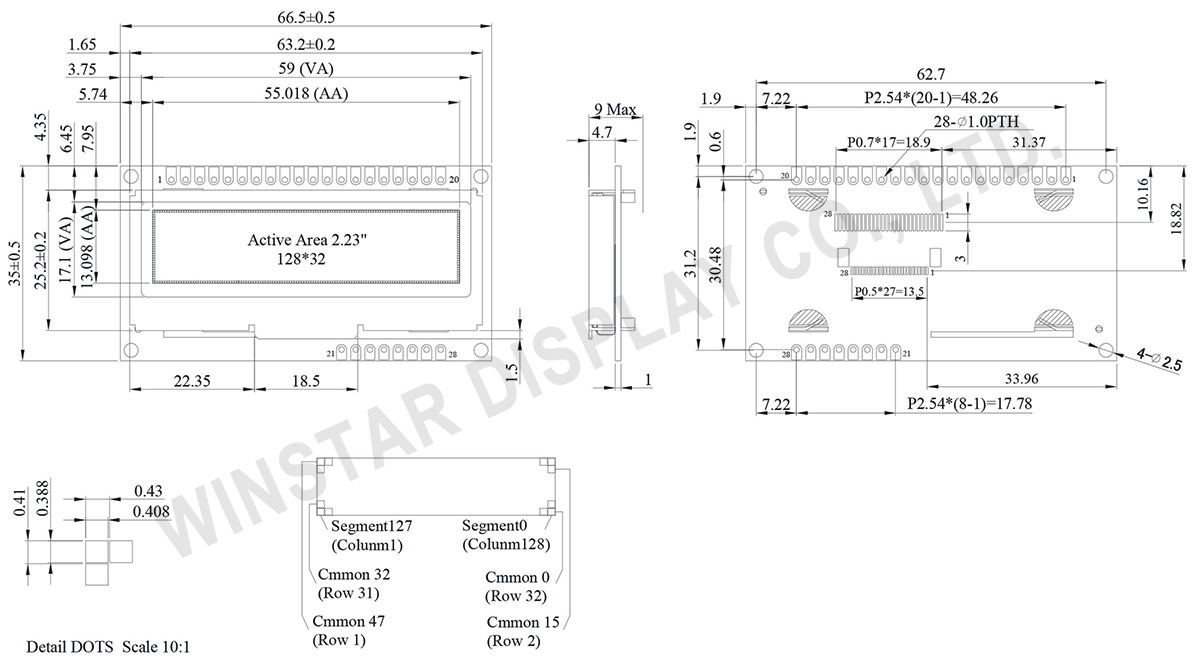

Drawing

Drawing

WEP012832A

SPECIFICATIONS

SPECIFICATIONS

Interface Pin Function

No. Symbol Function
1 VSS Ground.
2 VDD Power supply pin for core logic operation.
3 V0 Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
4 D/C# This is Data/Command control pin. When it is pulled HIGH (i.e. connect to VDDIO), the data at D[7:0] is treated as data. When it is pulled LOW, the data at D[7:0] will be transferred to the command register.
In I2C mode, this pin acts as SA0 for slave address selection.
5 R/W# This is read / write control input pin connecting to the MCU interface.
When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDDIO) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial interface is selected, this pin must be connected to VSS.
6 E/RD# When interfacing to a 6800-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH (i.e. connect to VDDIO) and the chip is selected.
When connecting to an 8080-microprocessor, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial interface is selected, this pin must be connected to VSS.
7~14 DB0~DB7 These are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be left opened. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
15 CS# This pin is the chip select input. (active LOW)
16 RES# This pin is reset signal input. When the pin is LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDDIO) during normal operation.
17,18 BS2,BS1 Communicating Protocol Select.
These pins are MCU interface selection input. See the following table:

68XX-parallel 80XX-parallel Serial I2C
BS1 0 1 0 1
BS2 1 1 0 0
19 N.C. No connection.
20 FG(GND) Ground.
21~25 N.C. No connection.
26 VSS Ground.
27 BSW Control the Piezoelectric Buzzer.
28 MSW Control the BLDC Vibration Motor.

Mechanical Data

Mechanical Data

Item Dimension Unit
Dot Matrix 128 × 32 Dots
Module dimension 66.5 × 35.0 × 9.0(Max) mm
Active Area 55.018 × 13.098 mm
Pixel Size 0.408 × 0.388 mm
Pixel Pitch 0.43 × 0.41 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/32 Duty
IC SSD1305
Buzzer OBO-11241SB
Vibration Motor W0625AB001F
Interface 6800, 8080, SPI, I2C
Size 2.23 inch



Electronical Characteristics

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD － 3.0 3.3 3.5 V
Input High Volt. VIH － 0.8×VDD － VDD V
Input Low Volt. VIL － 0 － 0.2×VDD V
Output High Volt. VOH IOUT = 100uA, 3.3MHz 0.9×VDD － VDD V
Output Low Volt. VOL IOUT = 100uA, 3.3MHz 0 － 0.1×VDD V
Supply Voltage for Buzzer BSW 50% square 0.8×VDD － VDD V
Supply Voltage for Vibration Motor MSW － 2.7 － 3.3 V
Operating Current at Display with 50% Check Board IDD VDD=3.3V － 90 120 mA

Absolute Maximum Ratings

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD -0.3 4.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C
