WEA012832D module supports internal Charge Pump supply and external VCC supply.

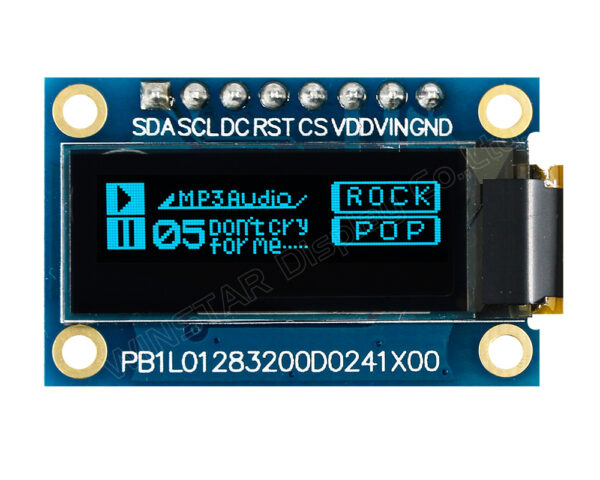

12832 OLED, 0.91″ SPI, SSD1306 OLED Display (COG+PCB)
Model No. WEA012832D
- 0.91″ OLED
- Type: Graphic
- Structure: COG+PCB
- 128×32 Dot Matrix, 12832 OLED
- IC：SSD1306
- 3V Power supply
- 1/32 duty
- Interface: SPI
- Display Color: White / Yellow / Sky Blue
Description
Drawing
Drawing
Data source ref: WEA012832DWPP3N00001
SPECIFICATIONS
SPECIFICATIONS
Interface Pin Function
| No. | Symbol | Function |
|---|---|---|
| 1 | SDA | When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. |
| 2 | SCL | |
| 3 | DC | Data/Command Control This pin is Data/Command control pin.. When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. |
| 4 | RST | This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation. |
| 5 | CS | This pin is the chip select input. (active LOW). |
| 6 | VDD | 2.8 ~ 3.3V Power supply pin for core logic operation. |
| 7 | VIN | 4.8 ~ 5.2V Power supply pin for core logic operation. |
| 8 | GND | This is a ground pin. |
Mechanical Data
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Dot Matrix | 128 x 32 | Dots |
| Module dimension | 32.5 × 20.5 × 2.41 | mm |
| Active Area | 22.384 × 5.584 | mm |
| Pixel Size | 0.152 × 0.152 | mm |
| Pixel Pitch | 0.175 × 0.175 | mm |
| Display Mode | Passive Matrix | |
| Display Color | Monochrome | |
| Drive Duty | 1/32 Duty | |
| IC | SSD1306BZ | |
| Interface | SPI | |
| Size | 0.91 inch | |
Absolute Maximum Ratings
Electronical Characteristics
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage for Logic (3V) | VDD | － | 2.8 | 3.0 | 3.3 | V |
| Supply Voltage for Logic (5V) | VIN | － | 4.8 | 5.0 | 5.2 | V |
| Input High Volt. | VIH | － | 0.8×VDD | － | VDD | V |
| Input Low Volt. | VIL | － | 0 | － | 0.2×VDD | V |
| Output High Volt. | VOH | － | 0.9×VDD | － | VDD | V |
| Output Low Volt. | VOL | － | 0 | － | 0.1×VDD | V |
| 50% Check Board operating Current | ICC | VDD=3V | － | 13.0 | 26.0 | mA |
