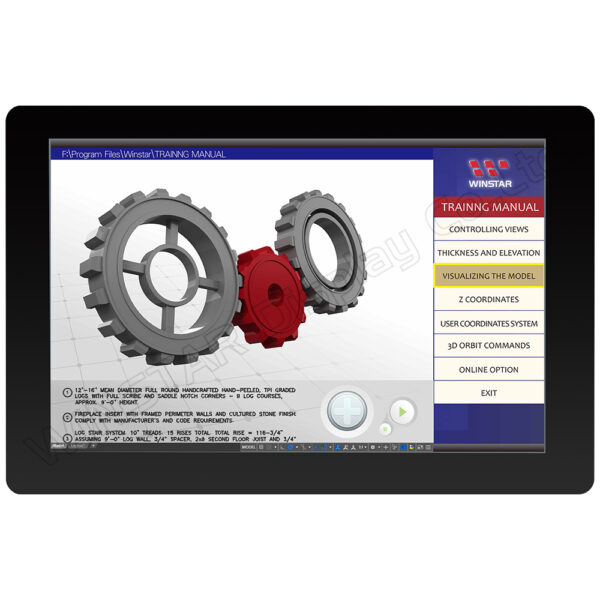

10.1 inch IPS TFT LCD 1280×800 with PCAP Touch

Model No. WF101KTYJPLNG0

Size : 10.1 inch
Resolution : 1280×800 dots
View Direction : IPS
Interface : LVDS
Controller IC：EK79202B1

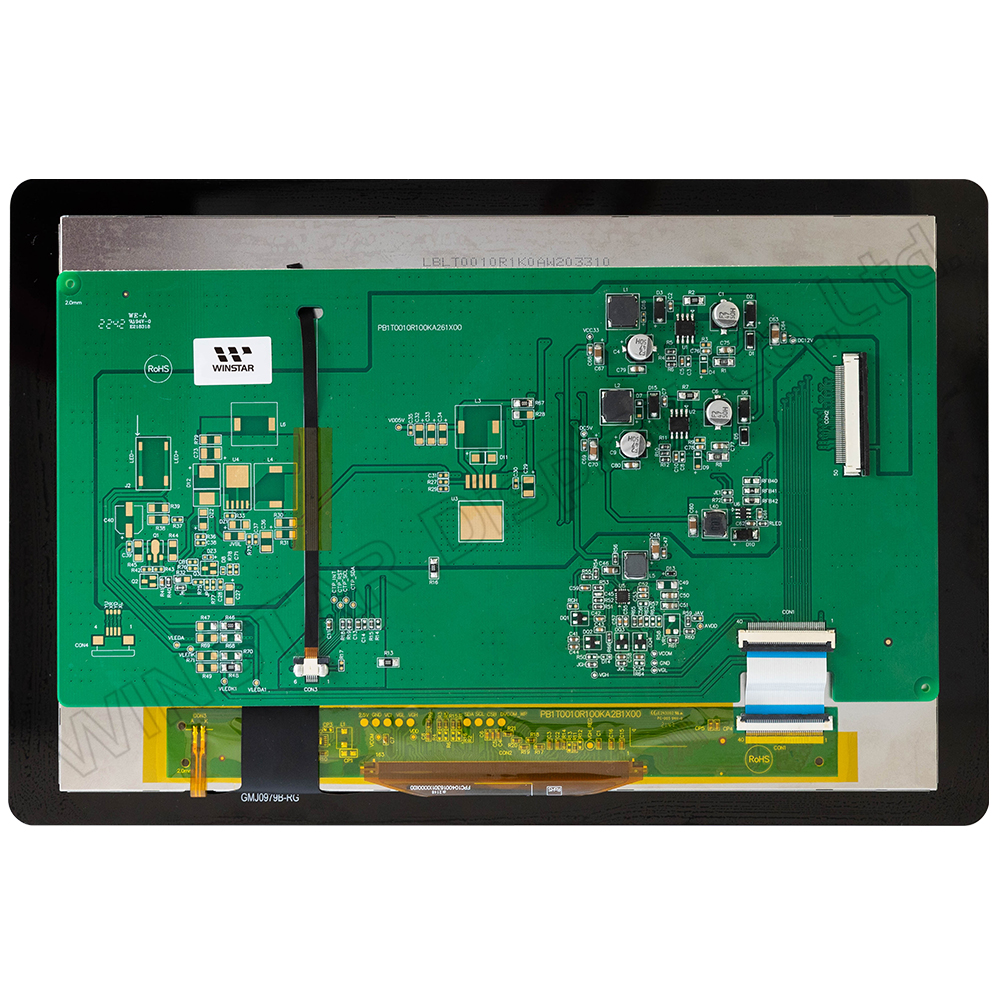

Control-Board : YES
Brightness (cd/m²): 300
Frame Through Hole: No
Touch Screen : Projected Capacitive Touch Panel (PCAP)
Detect Point : 5 Fingers

Categories: TFT LCD, TFT Panel + Controller Board

Description

WF101KTYJPLNG0 is a 10.1-inch IPS TFT-LCD module with Projected Capacitive Touchscreen (PCAP). This TFT-LCD module, built-in with EK79202B1, supports LVDS interface with a high resolution of 1280 x 800 (WXGA) pixels, brightness of 300 nits, and a contrast ratio: of 1000:1. WF101KTYJPLNG0 is featured with IPS panel which having the advantages of the wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD resolution (1280 horizontal by 800 vertical pixels).

This model featured a projected capacitive touch panel (PCAP), glare surface for cover lens , which is built-in with GT928 IC and supports I2C interface. The power voltage for this module is DC 12V. WF101KTYJPLNG0 is very suitable for HMI (Human-machine Interaction) applications, POS systems, etc.

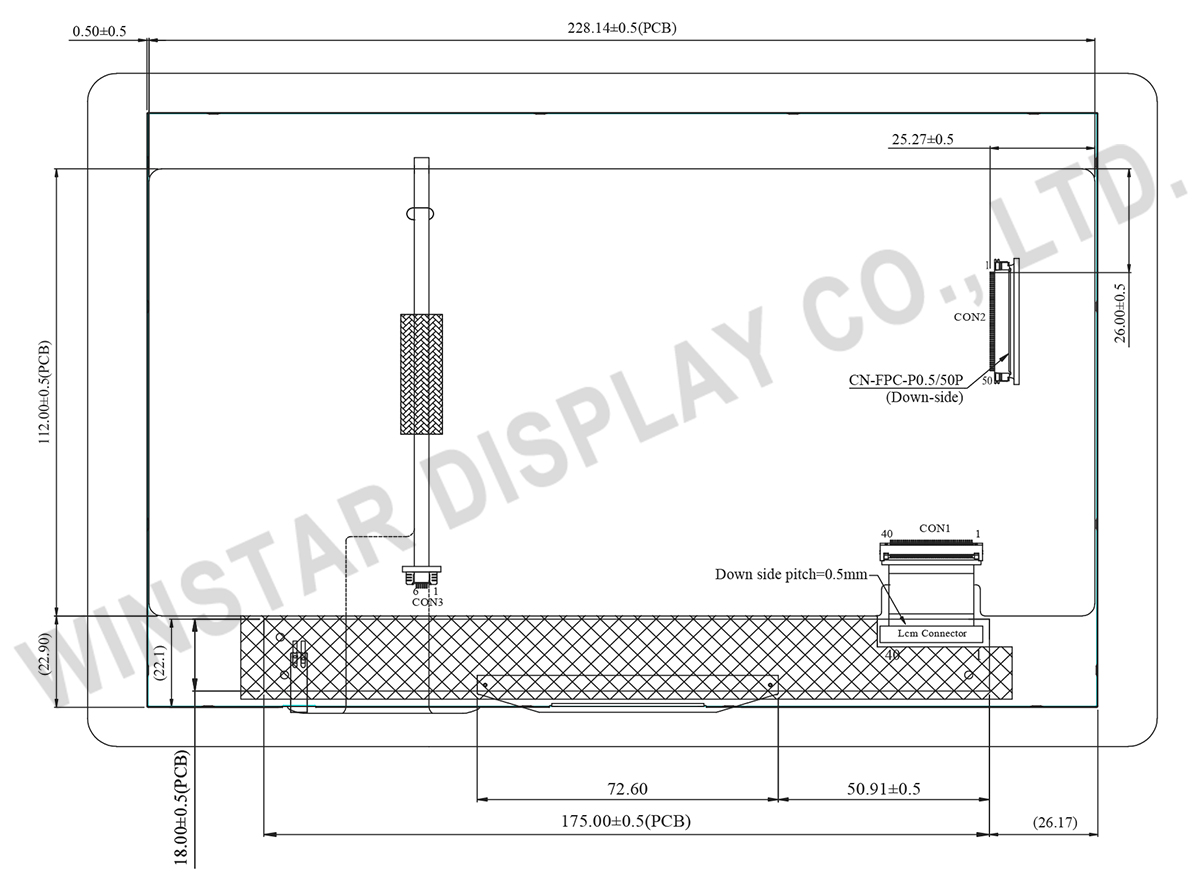

Drawing

SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.	Symbol	I/O	Function
1	DC12V	P	Power Supply
2	DC12V	P	Power Supply
3	DC12V	P	Power Supply
4	NC	–	No connection
5	GND	P	Ground
6	GND	P	Ground
7	GND	P	Ground
8	Rxin0-	I	-LVDS Differential Data Input
9	Rxin0+	I	+LVDS Differential Data Input
10	GND	P	Ground
11	Rxin1-	I	-LVDS Differential Data Input
12	Rxin1+	I	+LVDS Differential Data Input
13	GND	P	Ground
14	Rxin2-	I	-LVDS Differential Data Input
15	Rxin2+	I	+LVDS Differential Data Input
16	GND	P	Ground
17	RxCLK-	I	-LVDS Differential Clock Input
18	RxCLK+	I	+LVDS Differential Clock Input
19	GND	P	Ground
20	Rxin3-	I	-LVDS Differential Data Input
21	Rxin3+	I	+LVDS Differential Data Input
22	GND	P	Ground
23	PWM		This pin is connected to the external LED driver. PWM type control signal for brightness of the LED backlight. If not used, please float this pin.
24	NC	–	No connection
25	DC3V	P	Power Supply
26	NC	–	No connection
27	GND	P	Ground
28	SDA	I/O	Serial communication data input.
29	SCL	I	Serial communication clock input
30	INT	O	External interrupt to the host
31	RST	I	External Reset, Low is active
32	GND	P	Ground
33~43	NC	–	No connection
44	GND	P	Ground
45	GND	P	Ground
46	GND	P	Ground
47	NC	–	No connection
48	DC12V	P	Power Supply
49	DC12V	P	Power Supply
50	DC12V	P	Power Supply

General Specifications

Item	Dimension	Unit
Screen Diagonal	10.1	inch
Number of Pixels	1280 x 3(RGB) x 800	dots
Module dimension	257.96 × 168.6 × 22.33	mm
Active area	216.96 (H) × 135.6(V)	mm
Pixel pitch	0.1695 × 0.1695	mm
Display Mode	Normally Black , Transmissive
Viewing Angle	80/80/80/80
Pixel Arrangement	R.G.B. Vertical Stripe
TFT Drive IC	EK79202B1 or Equivalent
Backlight Type	LED,Normally White
Aspect Ratio	16:10
TFT Interface	LVDS
PCAP FW Version	80
PCAP IC	GT928 or Equivalent
PCAP Interface	I2C
PCAP Resolution	1280*800
Touch Panel	Projected Capacitive Touch Panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Conditions：

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power Voltage	DC12V	–	12.0	–	V
Power Voltage	IDC12V		260	390	mA
Supply PCAP	VDDT	2.8	–	3.3	V
Supply PCAP	IVDDT	–	14	21	mA

Backlight Characteristics：

Parameter	Symbol	Min	Typ	Max	Unit
PWM Control Level (LED_PWM)	High Level	–	3.3	–	V
PWM Control Level (LED_PWM)	Low Level	–	0	–	V
PWM Control Duty Ratio	–	1	–	100	%
PWM Control Frequency	–	–	10K	–	Hz
LED Life Time	–	50,000	–	–	Hr
