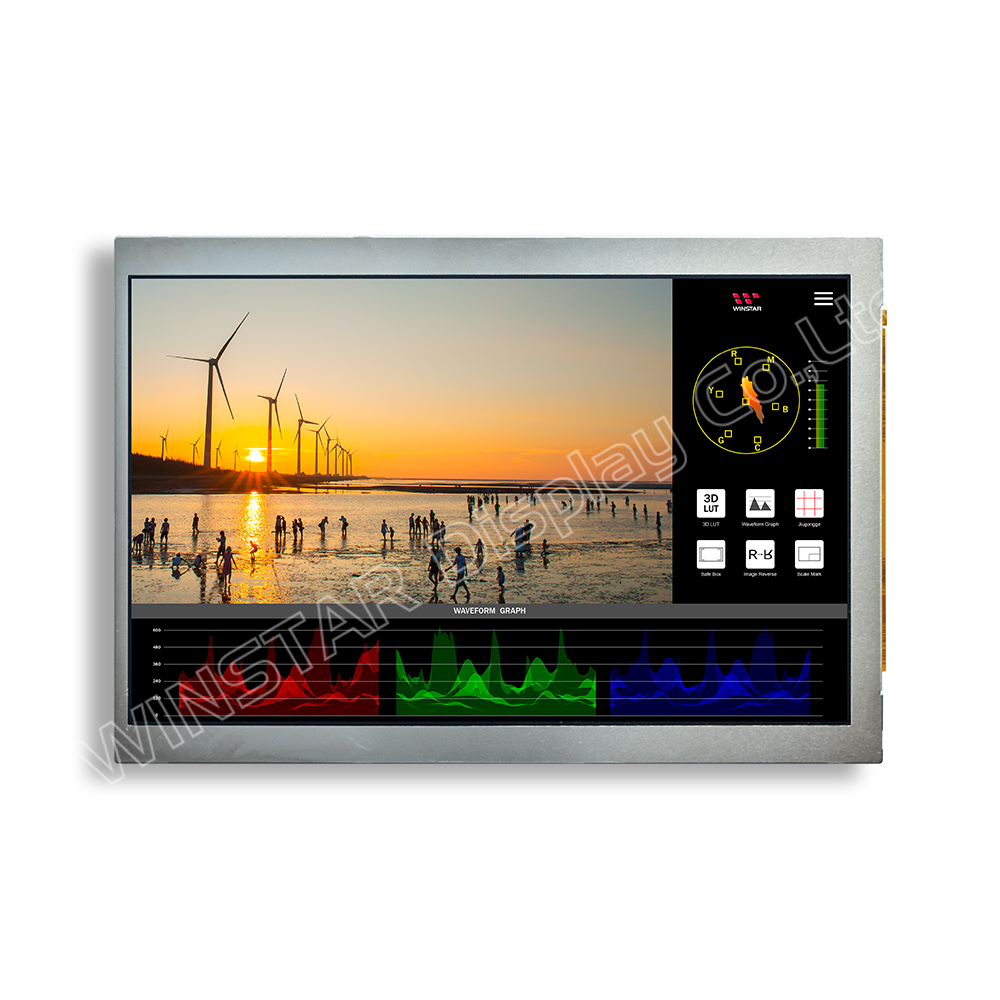

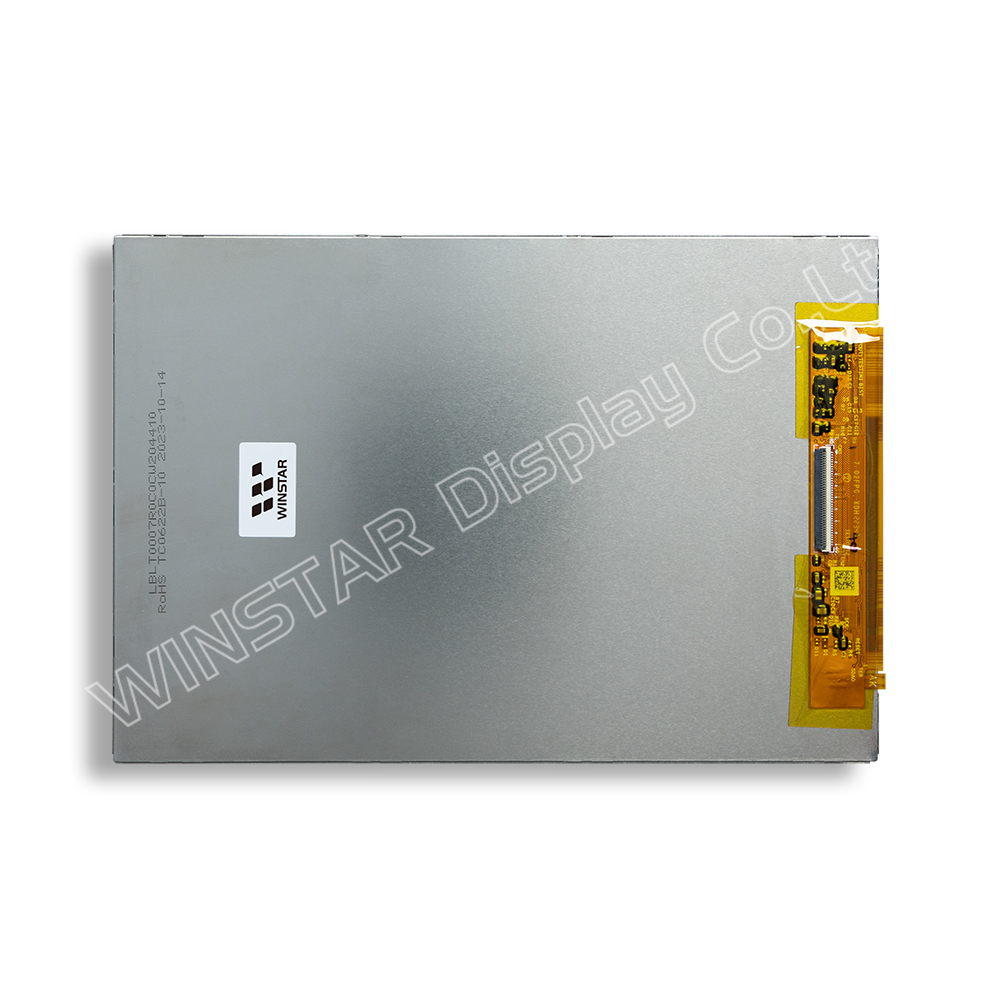

TFT-LCD Display 7-inch IPS 1200×1920 MIPI DSI 10:16

Model No. WF70C6TYAB5MNN0

  • Size : 7-inch (Portrait mode)
  • Resolution : 1200 x 1920 dots
  • View Direction : IPS
  • Interface : MIPI DSI
  • Driver IC : HX8279-D01*2 Cascade
  • Control-Board : No
  • Brightness(cd/m²): 500
  • Frame Through Hole : No
  • Touch Panel : No
Categories: ,

Description

WF70C6TYAB5MNN0 is a 7-inch TFT LCD display with IPS technology, featuring wide viewing angles (left 80/right 80/top 80/bottom 80 degrees). It has no frame screw holes and no control board, with a high resolution of 1200×1920 dots. The module dimension is 38.2 x 186.62 mm, with an aspect ratio of 10:16. The color arrangement mode is RGB-STRIPE, and the driving IC is HX8279-D01*2 Cascade, utilizing the MIPI DSI interface.

WF70C6TYAB5MNN0 is widely used as an external monitor for cameras or any applicable external display. It supports full-color display with excellent visual performance, suitable for navigation scenarios as well.The power supply voltage range for this display is 1.7V to 2.0V (typical value is 1.8V). The operating temperature range of this module is -20 to +70 °C, with a storage temperature range of -30 to +80°C.

7-inch IPS TFT-LCD Display Module Supports MIPI DSI Interface

Drawing

Drawing

TFT-LCD Display 7 inch IPS 1200x1920 MIPI 10:16 RGB-STRIPE - WF70C6TYAB5MNN0
Data source ref:WF70C6TYAB5MNN0#

Specifications

Specifications

Interface Pin Function

LCM PIN Definition

Pin Symbol Function
1 NC No connection
2 IOVCC Power supply for system ,IOVCC=1.8V
3 IOVCC
4 GND Ground
5 RESET Device reset signal
6 NC No connection
7 GND Ground
8 D0N MIPI Negative data signal (-)
9 D0P MIPI Positive data signal (+)
10 GND Ground
11 D1N MIPI Negative data signal (-)
12 D1P MIPI Positive data signal (+)
13 GND Ground
14 CLKN MIPI Negative clock signal (-)
15 CLKP MIPI Positive clock signal (+)
16 GND Ground
17 D2N MIPI Negative data signal (-)
18 D2P MIPI Positive data signal (+)
19 GND Ground
20 D3N MIPI Negative data signal (-)
21 D3P MIPI Positive data signal (+)
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC/TE Sync signal for touch panel. Float it if not used.
27 PWMO PWM control signal for LED driver
28 NC/BIST Enable the Test Image Generation function, if connect to ground. Float it if not used.
29 NC No connection
30 GND Ground
31 VLED- LED cathode
32 VLED-
33 NC No connection
34 VSN Analog supply negative voltage
35 VSN
36 NC No connection
37 VSP Analog supply positive voltage
38 VSP
39 VLED+ LED anode
40 VLED+

General Specifications

General Specifications

Item Dimension Unit
Size 7.0 inch
Dot Matrix 1200 x RGB x 1920(TFT) dots
Module dimension 112.1 x 163.75 x 2.4 mm
Active area 94.5 x 151.2 mm
Pixel pitch 0.07875 x 0.07875 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 80/80/80/80
Aspect Ratio 10:16
Color arrangement RGB-STRIPE
Driver IC HX8279-D01*2 Cascade
Interface MIPI DSI
Backlight Type LED,Normally White
Touch Panel Without Touch Panel
Surface Glare

*Color tone slight changed by temperature and driving voltage.

Absolute Maximum Ratings

Absolute Maximum Ratings

Item Symbol Min Typ Max Unit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃

Electrical Characteristics

Electrical Characteristics

Operating conditions

Item Symbol Min Typ Max Unit
Power Supply Input Voltage IOVCC 1.7 1.8 2.0 V
VSP 4.5 － 6.0 V
VSN -6 － -4.5 V
Current Consumption Operating IOVCC 39.4 40.3 41.3 mA
VSP 16.8 17.2 17.7 mA
VSN 12.9 13.3 13.7 mA
Sleep in IOVCC 1.58 1.59 1.61 mA
VSP 2.04 2.05 2.06 mA
VSN 0.045 0.05 0.052 mA

LED Driving Conditions

Parameter Symbol Min Typ Max Unit
LED current － － 440 － mA
LED voltage A 5.2 6.0 6.8 V
LED Life Time － － 50K － Hr
