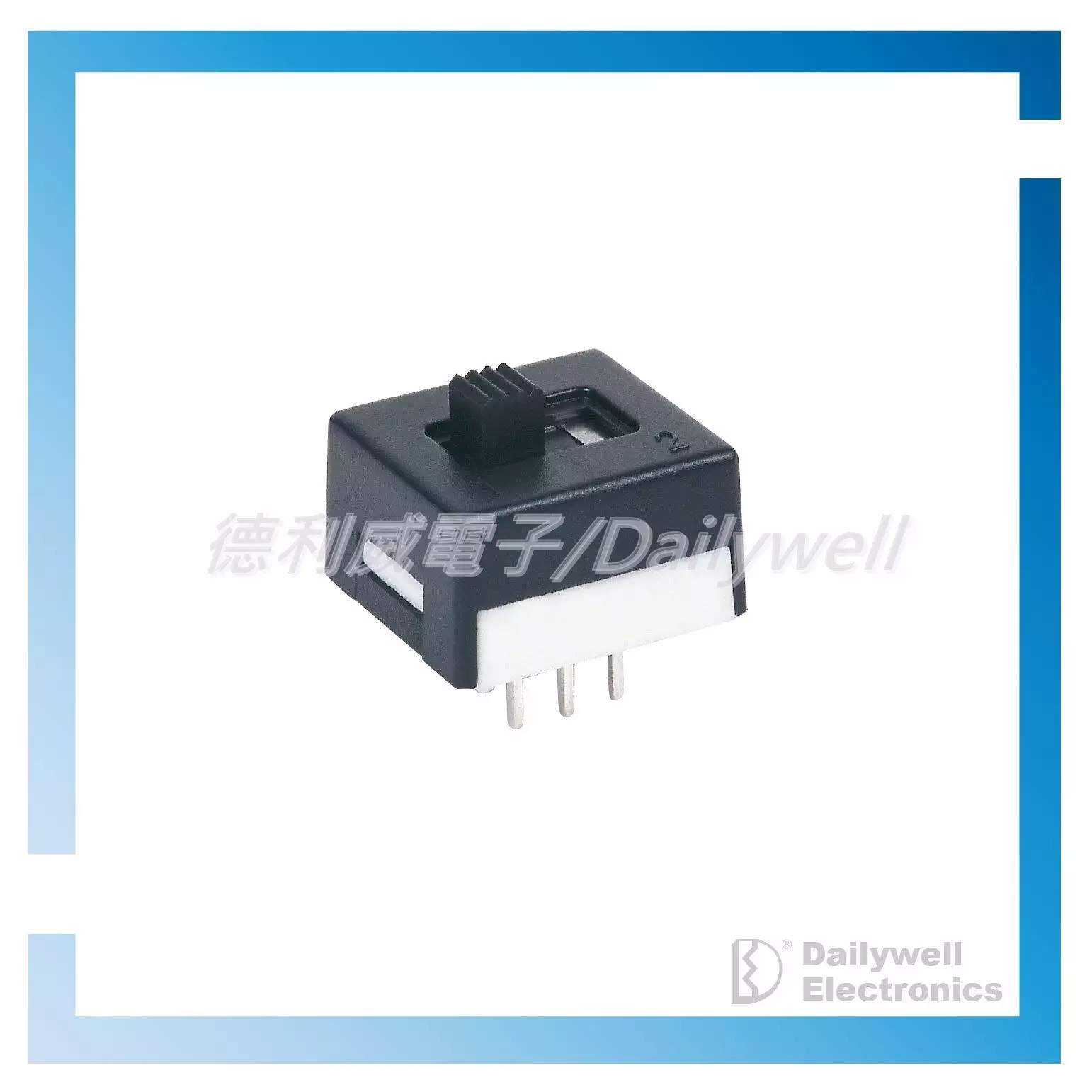

Miniature Slide Switches

6M Series
Miniature PCB Slide Switches

Dailywell 6M series slide switches offer a variety of switching functions, SPDT, DPDT, and contact rating up to 3A. We are offer a variety of termination options and actuators like recessed, extended or side actuators, and the operating temperature range between -40℃ and 80℃.

Dailywell 6M series slide switches have a plastic switches body housing and are great for the consumer electronics or instrumentation markets.

Categories: ,

Description

6M Series
Miniature PCB Slide Switches

Dailywell 6M series slide switches offer a variety of switching functions, SPDT, DPDT, and contact rating up to 3A. We are offer a variety of termination options and actuators like recessed, extended or side actuators, and the operating temperature range between -40℃ and 80℃.

Dailywell 6M series slide switches have a plastic switches body housing and are great for the consumer electronics or instrumentation markets.

Specification

Specification

  • CONTACT RESISTANCE: 50mΩmax. Initial.
  • MECHANICAL LIFE: 20, 000 cycles.
  • INSULATION RESISTANCE: 1, 000 MΩ min.
  • DIELECTRIC STRENGTH: 1, 000 Vrms min.@ sea level.
  • OPERATING TEMPERATURE: -40°C to 80°C.

Materials

Materials

  • CASE: PBT, white.
  • ACTUATOR: PBT, black.
  • HOUSING: POM, black.
  • CONTACT/TERMINALS: Copper alloy, with silver or gold plated.

Applications

Applications

Consumer electronics and Instrumentation.

Safety / Quality Approvals

Safety / Quality Approvals

SAFETY QUALITY APPROVALS
