Winstar Display WEO001602G is standard 16 characters x 2 Lines COG OLED display. This 16×2 COG OLED display with a PCB on module. This module is built-in SSD1311 controller IC which has different interfaces optional; it is default 6800, available options 8080, SPI and I2C. The WEO001602G is the WEO001602C with frame and PCB board version. Customers can consider choose this type if your applications need a frame and PCB display modules.
COG OLED Character Display 16×2
Model No. WEO001602G
- Type : Character (W/FR+PCB)
- Structure : COG+PCB
- 16 characters x 2 Lines
- IC：SSD1311
- 3V/5V Power supply
- 1/16 duty
- Interface: 6800, option 8080, SPI, I2C
- Display Color: White / Yellow
Description

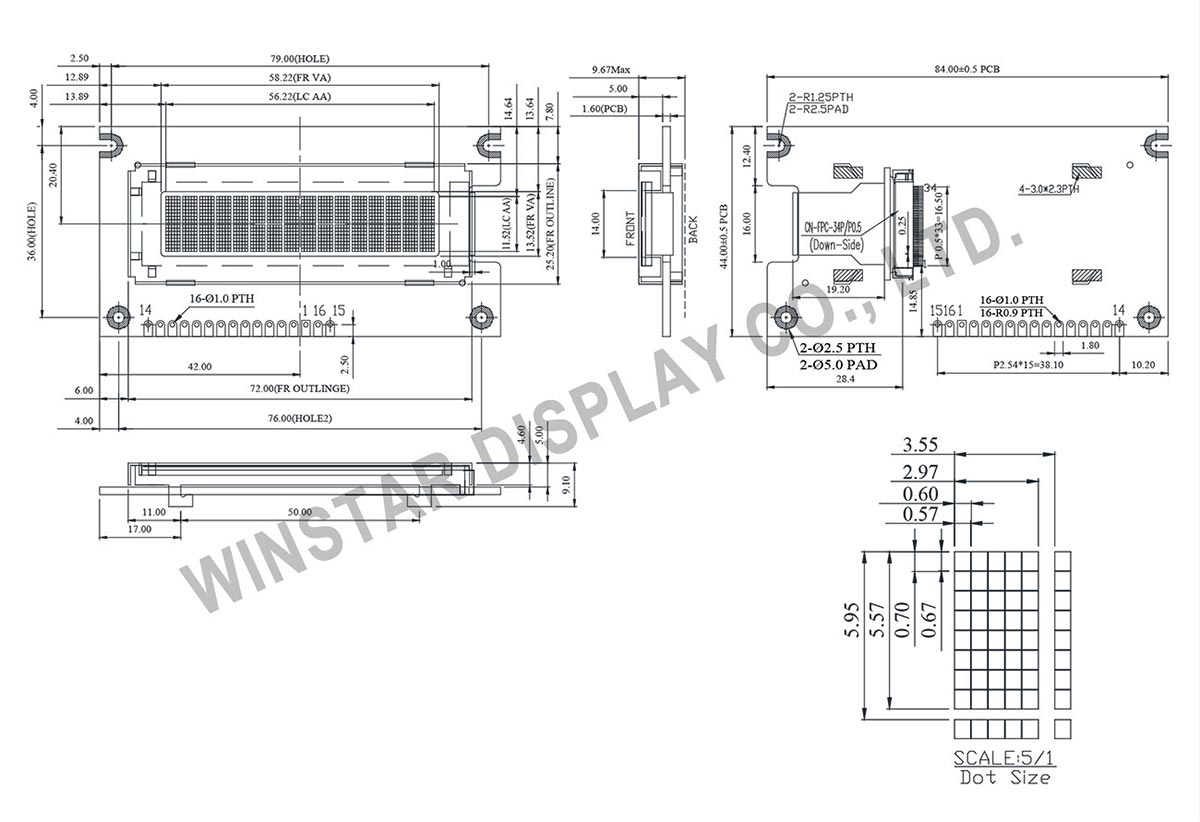

Drawing
Drawing
SPECIFICATIONS
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground Pin |
| 2 | VDD | Voltage for logic |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
| 15~16 | NC | No Connection |
Mechanical Data
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 84.4 × 44.0 | mm |
| View area | 58.22 × 13.52 | mm |
| Active area | 56.22 × 11.52 | mm |
| Dot pitch | 0.60 × 0.70 | mm |
| Dot size | 0.57 × 0.67 | mm |
Electronical Characteristics
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VDD | — | 2.8 / 4.8 | 3.0 / 5.0 | 3.3 / 5.3 | V |
