WF70A2SIAGDNN0 is high brightness TFT LCD with WVGA 800×480 resolution, diagonal size 7 inch. This TFT model is built in with ST-5623 source driver IC and ST-5091 gate driver IC with high brightness 900 nits (typical value). WF70A2 model supports RGB interface. The supply voltage for logic (VCC) of WF70A2SIAGDNN0 is from 3.0V to 3.6V, typical value 3.3V, Anti-Glare surface panel, View Direction 12 o’clock, Gray scale inversion 6 o’clock, and aspect ratio 16:9. It can be operating at temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃.

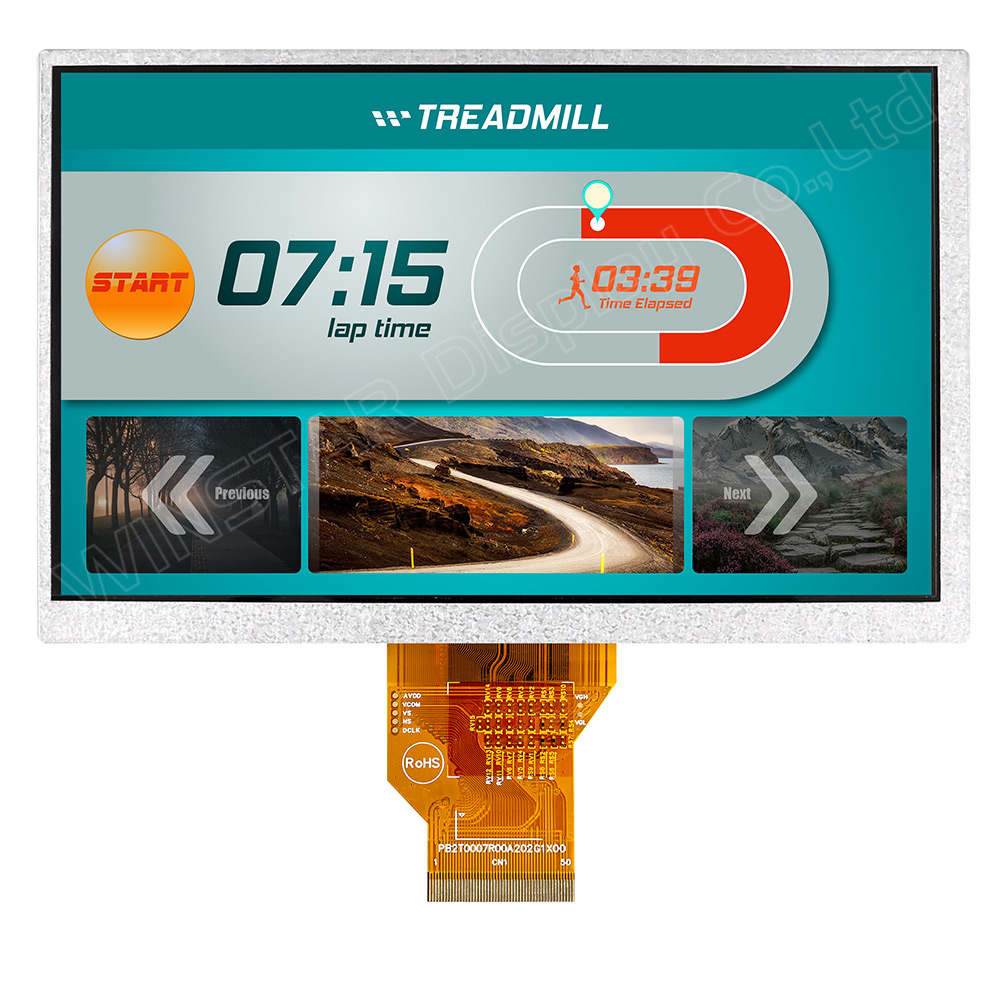

7 inch Sunlight Readable Displays TFT
Model No. WF70A2SIAGDNN0
- Size : 7”
- Resolution : 800×480 dots
- View Direction: 12H
- Interface : RGB
- Driver IC : Source IC: ST-5623D, Gate IC: ST5091D
- Control-Board : No
- Brightness(cd/m²) : 900
- Frame Through Hole : No
- Touch Screen : No
Description

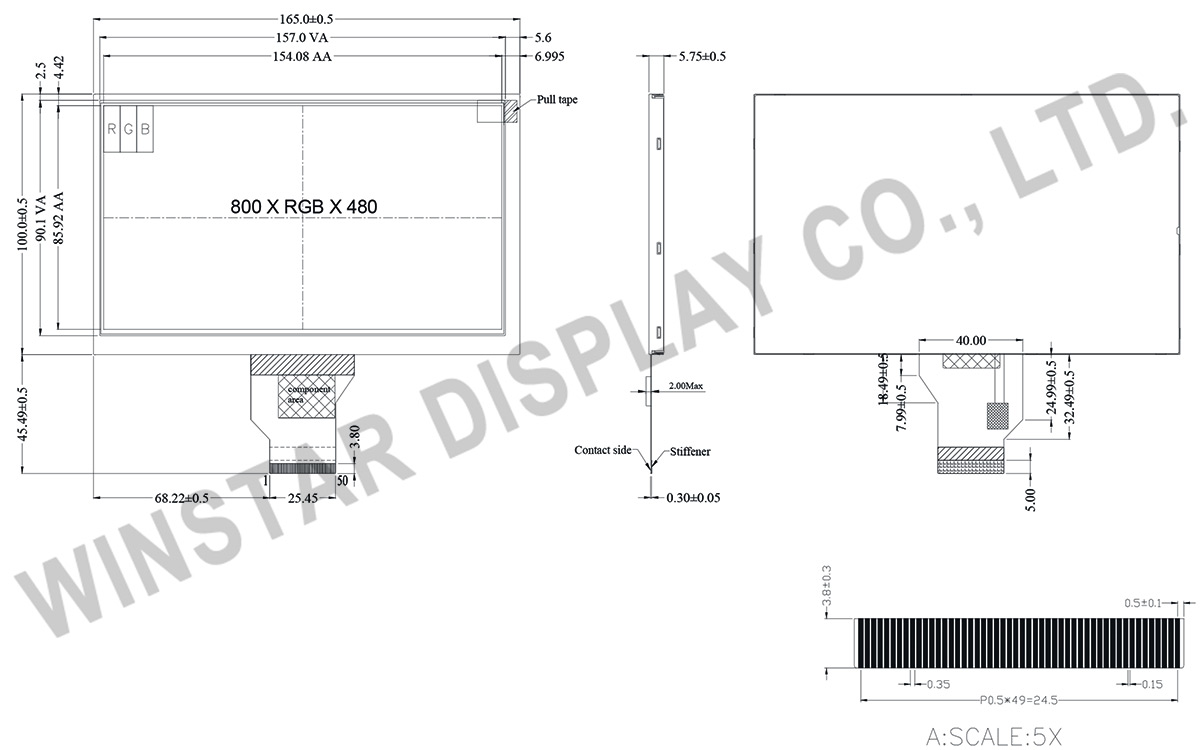

Drawing
Drawing
Interface
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1~2 | A | Power supply for backlight |
| 3~4 | K | Backlight ground |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | VCC | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VS | Vertical Sync Input |
| 11 | HS | Horizontal Sync Input |
| 12 | B7 | Blue data(MSB) |
| 13 | B6 | Blue data |
| 14 | B5 | Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data |
| 19 | B0 | Blue data(LSB) |
| 20 | G7 | Green data(MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data |
| 27 | G0 | Green data(LSB) |
| 28 | R7 | Red data(MSB) |
| 29 | R6 | Red data |
| 30 | R5 | Red data |
| 31 | R4 | Red data |
| 32 | R3 | Red data |
| 33 | R2 | Red data |
| 34 | R1 | Red data |
| 35 | R0 | Red data(LSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left / right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin. |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49~50 | NC | No connection |
General Specifications
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 7 | inch |
| Dot Matrix | 800×RGB×480(TFT) | dots |
| Module dimension | 165×100.0×5.75 | mm |
| Active area | 154.08×85.92 | mm |
| Pixel Pitch | 0.1926×0.179 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o’clock | |
| Gray Scale Inversion Direction | 6 o’clock | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| Color arrangement | RGB-STRIPE | |
| Driver IC | Source IC: ST-5623D, Gate IC: ST5091D | |
| Touch Panel | Without Touch Panel | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
Electrical Characteristics
Electrical Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | 3 | 3.3 | 3.6 | V |
| Power voltage | AVDD | – | 10.4 | – | V |
| Power Supply For Current | VCC =3.3V | – | 4.3 | – | mA |
| Power voltage | VGH | 14.5 | 15 | 15.5 | V |
| Power voltage | VGL | -10.5 | -10 | -9.5 | V |
| Input signal voltage | VCOM | 3.54 | 4.04 | 4.54 | V |
