5.7 inch Color LCD Module

Model No. WF57WTLECDNN0

Size : 5.7”
Resolution : 320 x 240 dots
View Direction : 6H
Interface : RGB
Driver IC：HX8218+HX8615
Control-Board : YES
Brightness(cd/m²): 500
Frame Through Hole: Yes
Touch Screen : No
O-Film : Option

Categories: TFT LCD, TFT Panel + Controller Board

Description

WF57WTLECDNN0 is a 5.7-inch color TFT LCD module with the controller board. The display has a 320 x 240 dots resolution and 500 cd/m2 brightness. It is equipped with a built-in HX8218+HX8615 driver IC supporting 18-bit RGB interfaces. This TFT module features a frame around the screen with four screw holes. The voltage power supply of the display is from 3.0V to 3.6V, and the typical value is 3.3V. The module dimension is 143.5 × 104.1 mm with an active area of 115.2 × 86.4 mm.

WF57WTLECDNN0 has a 6 o’clock viewing direction, a 12 o’clock gray scale inversion, and a 4:3 aspect ratio. The operating temperatures cover from -20℃ to +70℃, and its storage temperatures are from -30℃ to +80℃.

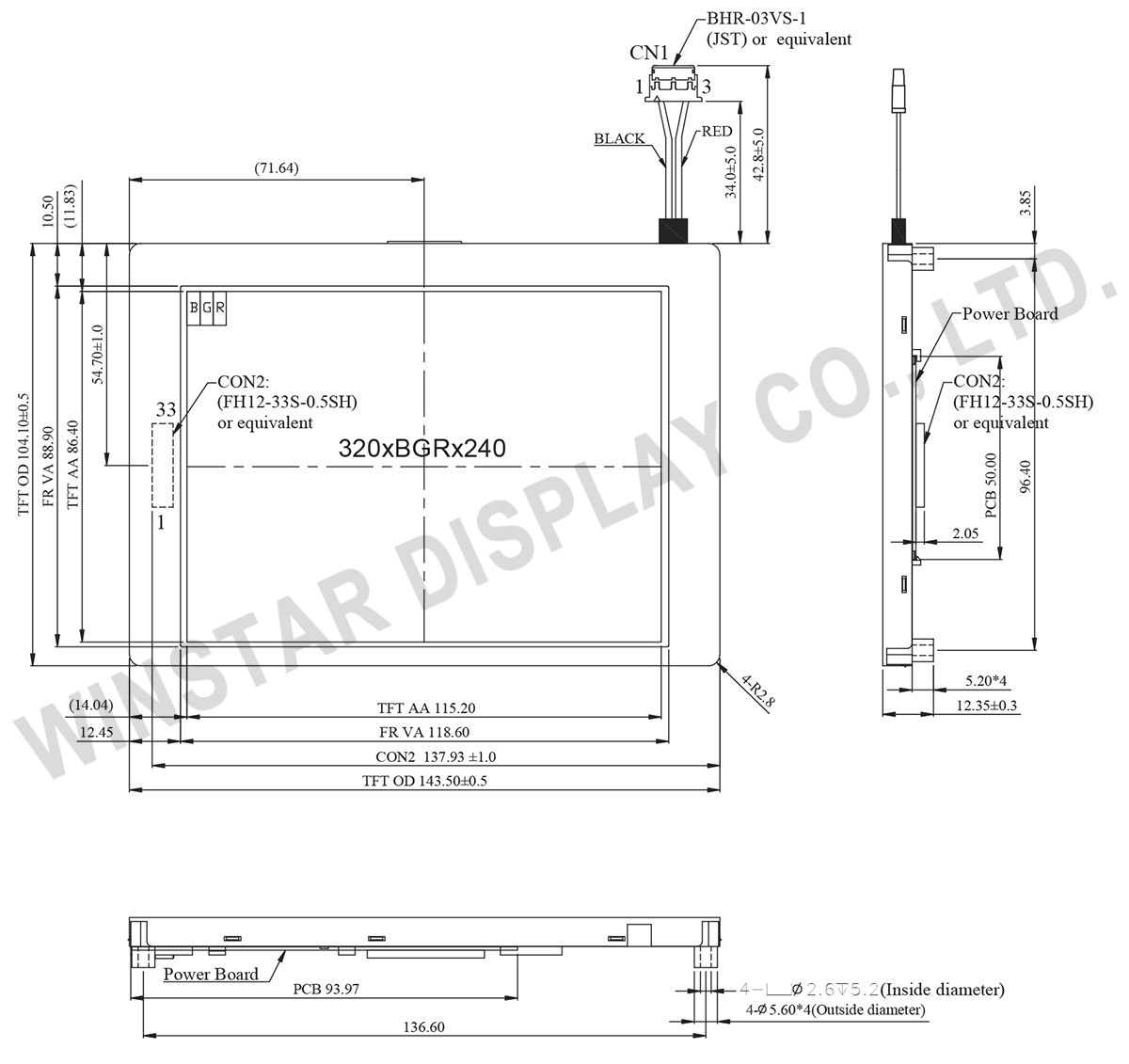

Drawing

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	GND	Ground
2	CK	Clock signal for sampling each data signal
3	Hsync	Horizontal synchronous signal
4	Vsync	Vertical synchronous signal
5	GND	Ground
6	R0	Red Data bit(LSB)
7	R1	Red Data bit
8	R2	Red Data bit
9	R3	Red Data bit
10	R4	Red Data bit
11	R5	Red Data bit(MSB)
12	GND	Ground
13	G0	Green Data bit(LSB)
14	G1	Green Data bit
15	G2	Green Data bit
16	G3	Green Data bit
17	G4	Green Data bit
18	G5	Green Data bit(MSB)
19	GND	Ground
20	B0	Blue Data bit(LSB)
21	B1	Blue Data bit
22	B2	Blue Data bit
23	B3	Blue Data bit
24	B4	Blue Data bit
25	B5	Blue Data bit(MSB)
26	GND	Ground
27	NC	No connect
28	VCC	+3.3V power supply
29	VCC	+3.3V power supply
30	R/L	Selection signal for horizontal scanning direction (L: Normally H: Right-and-left reversal)
31	U/D	Selection signal for vertical scanning direction (H: Normally L: Up-and-Down reversal)
32	NC	No connect
33	GND	Ground

General Specifications

Item	Dimension	Unit
Size	5.7	inch
Dot Matrix	320 × RGB × 240 (TFT)	dots
Module dimension	143.5 × 104.1 × 12.35	mm
Active area	115.2 × 86.4	mm
Dot pitch	0.12 × 0.36	mm
LCD type	TFT, Normally White, Transmissive
TFT Driver IC	HX8218+HX8615 or Equivalent
Interface	18-bit RGB
View direction	6 o’clock
Gray Scale Inversion direction	12 o’clock
Aspect Ratio	4:3
Backlight Type	LED, Normally White
Touch Panel	Without touch panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

1.Operating conditions：

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VCC	－	3.0	3.3	3.6	V
Supply Current For LCM	ICC	－	－	110	170	mA
Power Consumption	－	－	－	363	612	mW

2.LED driving conditions：

Parameter	Symbol	Min	Typ	Max	Unit
LED current	–	–	140	–	mA
Power Consumption	–	1260	–	1470	mW
LED voltage	VBL+	9.0	–	10.5	V
LED Life Time	–	–	50,000	–	Hr
