16×2 LCD Module, LCD Alphanumeric Display

Model No. WH1602C

16×2 Alphanumeric LCD Display Module
5×8 dots includes cursor
+5V power supply ( Also available for +3V)
Negative voltage option is only for the +3V power supply
1/16 duty cycle
LED can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
Interface: 6800 (ST7066 IC), option SPI/I2C (RW1063 IC)
Display LCD 1602

Category: Character LCD

Description

Winstar LCD Alphanumeric Display, Alphanumeric LCD Display Module

Winstar WH1602C 16×2 LCD Module is a very popular module. This is 16 characters by 2 lines LCD Alphanumeric Display, built in with ST7066 controller, 5V power supply default 6800 4/8-bit parallel interface, also available in SPI / I2C interface. There are different LED backlights available in various colors including blue, green, white, yellow-green and red. The LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K.

There are different interface options for WH1602C series, details as below:
►WH1602C : 6800 interface (ST7066 IC)
►WH1602C1 : SPI interface (RW1063 IC)
►WH1602C2 : I2C interface (RW1063 IC)

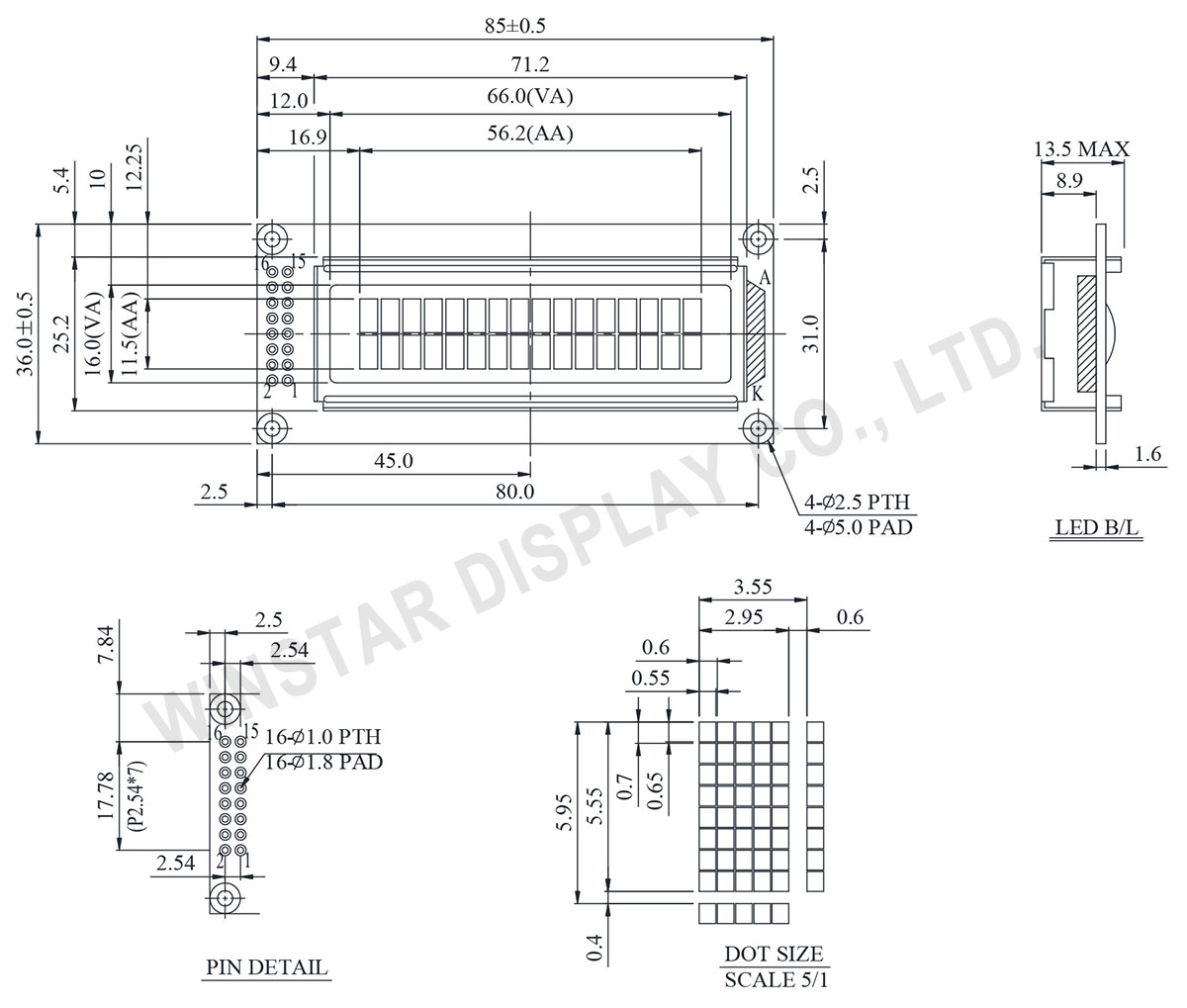

Drawing

Specifications

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	VO	(Variable)	Operating voltage for LCD
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read L: Write
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	A	－	Power supply for B/L(+)
16	K	－	Power supply for B/L(-)

Mechanical Data

Item	Dimension	Unit
Number of Characters	16 Characters x 2 Lines	－
Module dimension	85.0 x 36.0 x 13.5 (MAX)	mm
View area	66.0 x 16.0	mm
Active area	56.20 x 11.5	mm
Dot size	0.55 x 0.65	mm
Dot pitch	0.60 x 0.70	mm
Character size	2.95 x 5.55	mm
Character pitch	3.55 x 5.95	mm
Duty	1/16
Backlight Type	LED
IC	ST7066U
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VI	VSS	－	VDD	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	7	V
Supply Voltage For LCD	VDD-Vo	-0.3	－	13	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 3.6 3.2	－ 3.7 －	5.2 3.8 －	V V V
Input High Volt.	VIH	－	0.7 VDD	－	VDD	V
Input Low Volt.	VIL	－	Vss	－	0.6	V
Output High Volt.	VOH	－	3.9	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.4	V
Supply Current	IDD	VDD=5.0V	1.0	1.2	1.5	mA
