122 x 32 Monochrome Graphic LCD Display Module

122×32 Graphic LCD Display Module

Model No. WG12232A

Available for internal oscillation (A Type), External oscillation (C Type) 2KHz
IC: SBN1661G
1/32 duty cycle
Negative voltage optional for +3V power supply
Chinese version: WG12232L
Interface: 6800

Category: Graphic LCD

Description

The WG12232A is a monochrome 122×32 graphic LCD display module with a PCB board, featuring an outline size of 84 x 44 mm and a viewing area size of 60 x 18 mm, delivering clear and concise graphic displays. This 122×32 graphic LCD display is built with the SBN1661G controller IC.

It supports a 6800 8-bit parallel interface and defaults to a 5V power supply, with an optional version of the negative voltage generator for 3V. The WG12232A model comes with internal oscillation capability. For customers who require external oscillation of 2KHz, the WG12232C model is available. If the customer requires support for Chinese fonts, please choose the WG12232L model series.

The WG12232A graphic LCD display module series comes with a PCB board, eliminating the need for customers to develop additional PCB boards themselves. Four screw holes are designed on the PCB to facilitate easy installation of the module on the application product. This 122×32 LCD module can operate at temperatures ranging from -20℃ to +70℃, with storage temperatures ranging from -30℃ to +80℃.

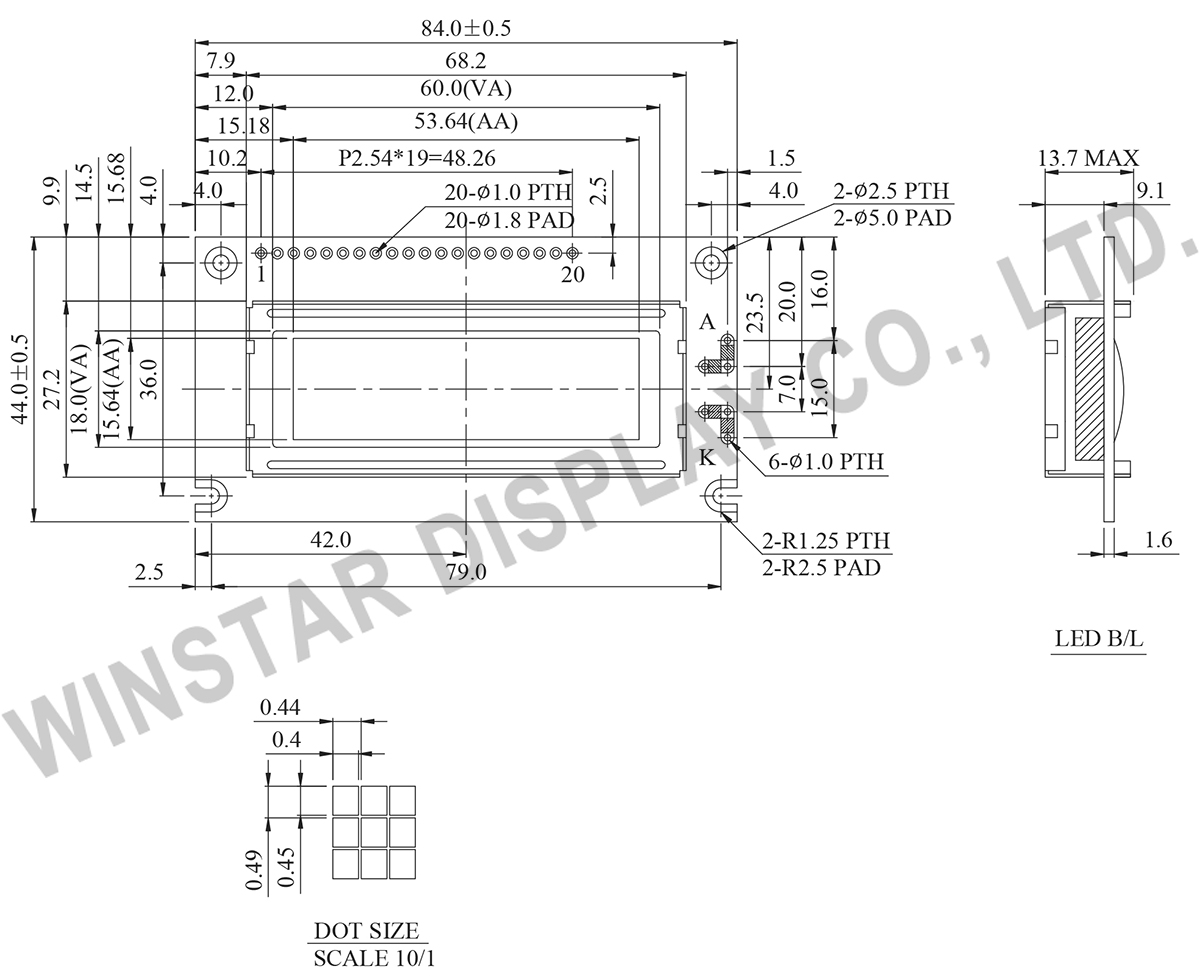

Drawing

Data source ref:WG12232A-TFH-V#A

Specifications

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	GND
2	VDD	3.0V	Power supply for logic
3	Vo	(Variable)	Contrast Adjustment
4	A0	H/L	H : Data L : Instruction
5	CS1	H/L	Chip enable IC1
6	CS2	H/L	Chip enable IC2
7	NC	－	No connection
8	NC	－	No connection
9	R/W	H/L	H : Read ; L : Write ( 68 series MPU interface only )
10	DB0	H/L	Data bus line
11	DB1	H/L	Data bus line
12	DB2	H/L	Data bus line
13	DB3	H/L	Data bus line
14	DB4	H/L	Data bus line
15	DB5	H/L	Data bus line
16	DB6	H/L	Data bus line
17	DB7	H/L	Data bus line
18	RES	H/L	H → L: The LCM be reset
19	Vee	－	Negative Voltage Output
20	NC	－	No connection

Mechanical Data

Item	Dimension	Unit
Number of dots	122 x 32	－
Module dimension	84.0 x 44.0 x 13.7 (Max)	mm
View area	60.0 x 18.0	mm
Active area	53.64 x 15.64	mm
Dot size	0.40 x 0.45	mm
Dot pitch	0.44 x 0.49	mm
Duty	1/32
Backlight Type	LED
IC	SBN1661G
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input voltage	VI	-0.3	－	VDD+0.3	V
Supply voltage for Logic	VDD-VSS	-0.3	－	+6.0	V
LCD bias voltage	VLCD	3.5	－	13	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	2.7	3.3	3.6	V
Supply Voltage For LCM	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 4.3 3.8	－ 4.45 －	－ 4.6 －	V V V
Input High Volt.	VIH	VDD=3.3V	2.7	3.3	VDD+0.5	V
Input Low Volt.	VIL	－	0	0.7	1.1	V
Output High Volt.	VOH	－	VDD-0.3	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.3	V
Supply Current	IDD	VDD=3.3V	－	2.5	4.0	mA
