100×16 OLED Display Module 2.59

Model No. WEG010016F

  • Type: Graphic
  • Structure: COB
  • Size: 2.59″
  • 100 x 16 Dot Matrix
  • IC：WS0010-TX
  • 5V power supply
  • 1/16 duty cycle
  • Interface: 6800, option 8080, SPI
  • Display Color: White / Yellow / Blue / Green
Categories: ,

Description

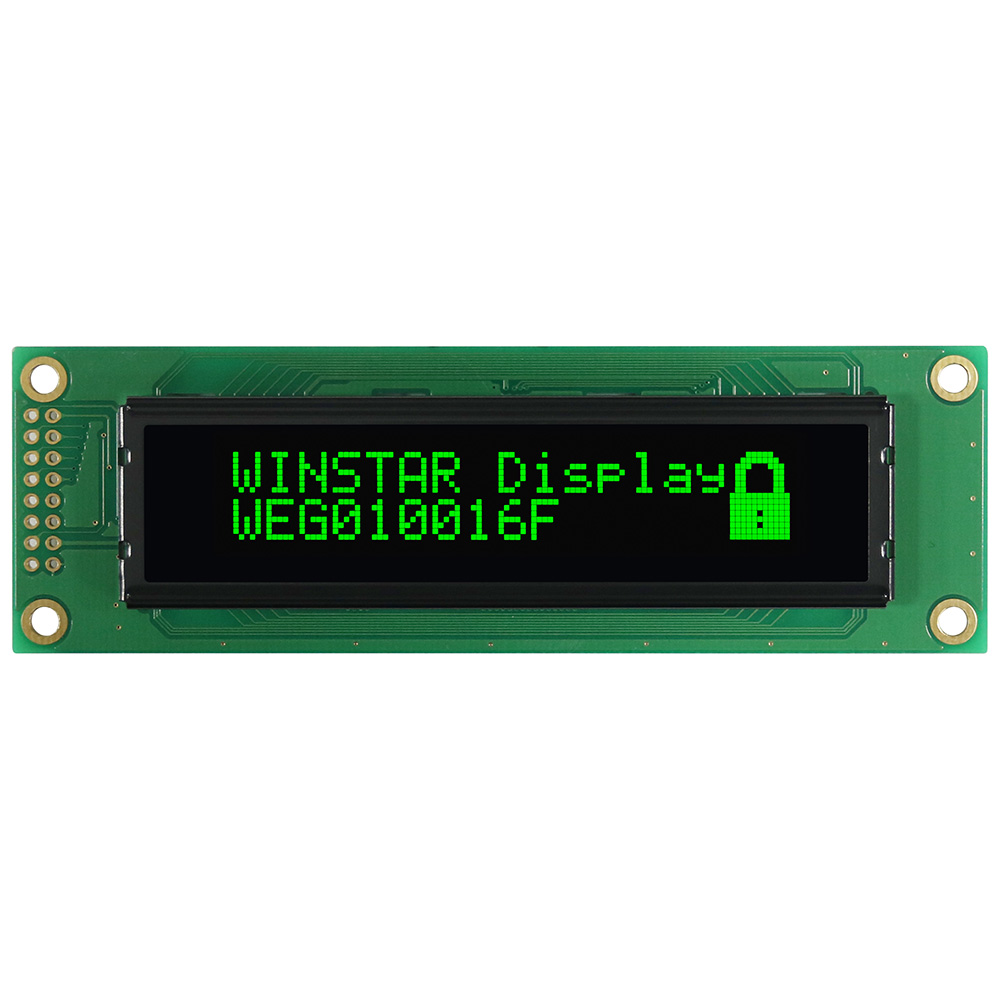

This is a COB OLED display which is made of 100×16 dots, diagonal size 2.59 inch. WEG010016F graphic OLED display module has a very high contrast ratio (10,000:1) with an extremely dark background versus the lit-up pixels on the display. This mono OLED display features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. The supply voltage for logic (VDD) is from 4.8V to 5.3V, typical value 5V, 1/16 driving duty.

Drawing

Drawing

WEG010016F - 1100x16 OLED Display Module 2.59"

Data source ref: WEG010016FLPP5N00100

SPECIFICATIONS

SPECIFICATIONS

Interface Pin Function

Pin No. Symbol Level Description
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC －
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC －
16 NC －

Mechanical Data

Mechanical Data

Item Dimension Unit
Dot Matrix 100 x 16 Dots －
Module dimension 116.0 x 37.0 x 9.8 mm
View area 85.0 x 18.6 mm
Active area 64.95 x 11.15 mm
Dot size 0.6 x 0.65 mm
Dot pitch 0.65 x 0.70 mm
Panel Type OLED, Monochrome
Duty 1/16
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 2.59 inch

Absolute Maximum Ratings

Absolute Maximum Ratings

Item Symbol Min Max Unit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V

Electronical Characteristics

Electronical Characteristics

DC Electrical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage For Logic VDD-VSS － 4.8 5.0 5.3 V
Input High Volt. VIH － 0.8xVDD － VDD V
Input Low Volt. VIL － GND － 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD － VDD V
Output Low Volt. VOL IOL=0.5mA GND － 0.2xVDD V
50% Check Board Operating Current IDD VDD=5V 28 35 52.5 mA

Search keyword: 100×16 oled, oled 100×16, 2.59 oled, 2.59″ oled, 2.59 inch oled, oled 2.59″
