The WF101LSYAPLNT0 is a standout high-performance 10.1-inch LVDS TFT LCD featuring a Resistive Touch Panel (RTP), making it well-suited for a diverse range of applications, including industrial control panels, testing equipment, medical devices, vending machines, and automatic payment machines.
This cutting-edge display module boasts a resolution of 1280×800 pixels, delivering clear visuals with an impressive contrast ratio of 1000:1. With a high brightness of 750 cd/m2, it ensures optimal visibility in various environments. The display utilizes an EK79202B1 driver IC that supports LVDS interfaces, guaranteeing smooth and reliable operation in any application.
Noteworthy is the WF101LSYAPLNN0’s adoption of an IPS panel, providing wide viewing angles of Left: 80 / Right: 80 / Up: 80 / Down: 80 degrees (typical value). The 1280×800 IPS touch screen enhances user interactions, making it particularly well-suited for applications that demand precise touch input.

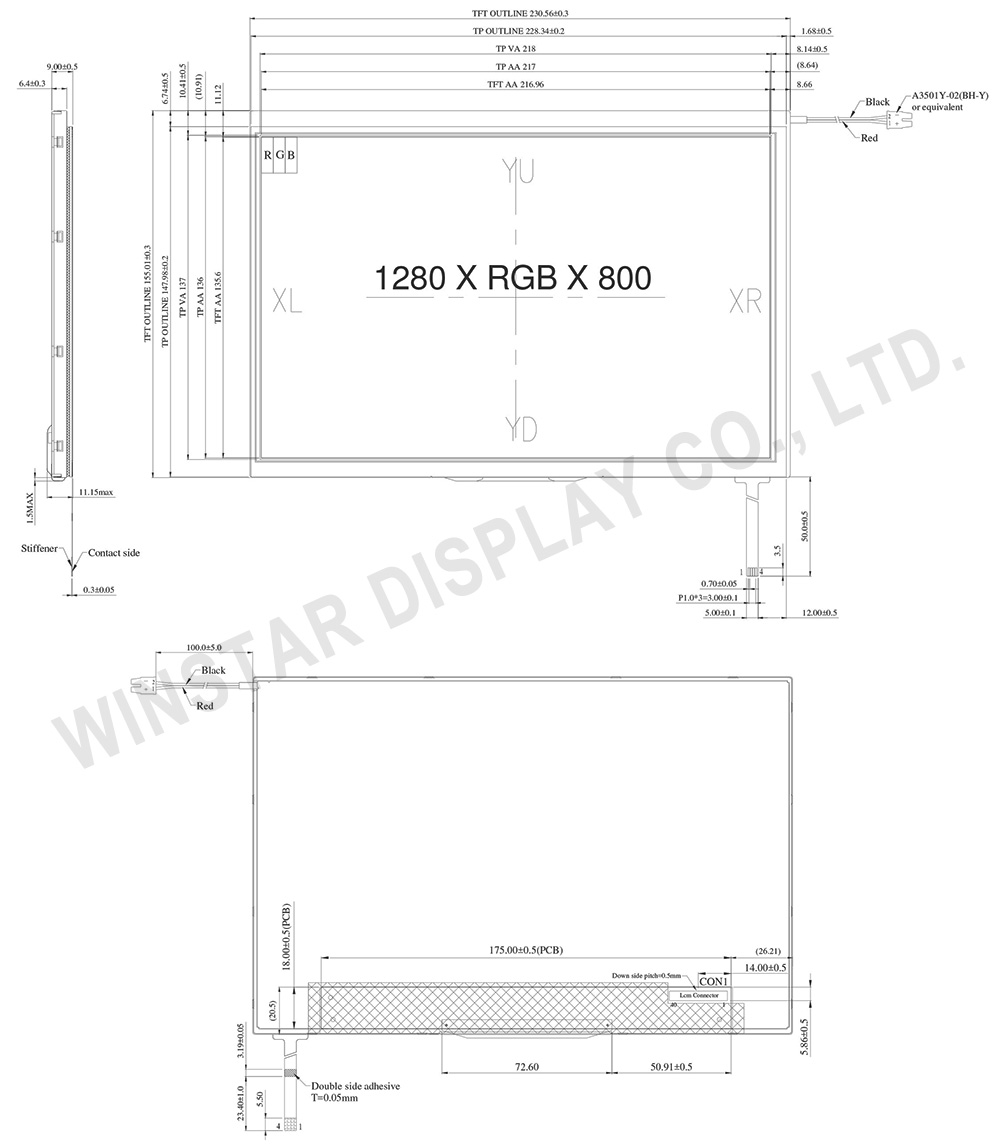

With dimensions measuring 230.56×155.01 mm and an active area of 216.96×135.6 mm, this 1280×800 LCD display offers a compact yet impactful visual solution. The display’s supply voltage (VCC) ranges from 3.0V to 3.5V, with a typical value of 3.3V, ensuring efficient power utilization.
Operating effectively in temperatures ranging from -20℃ to +70℃, and maintaining stability during storage in temperatures from -30℃ to +80℃, the WF101LSYAPLNT0 reflects a robust design and reliability. In conclusion, this display module stands as a robust and adaptable solution, making it an excellent choice for industrial control panels, testing equipment, medical devices, vending machines, automatic payment machines, and more.
This module offers two additional model options: one without a touch panel, the WF101LSYAPLNN0, and another equipped with a PCAP touch panel, the WF101LSYAPLNG0. This diverse range of choices caters to various preferences and specific application requirements.
