1.28 inch SH1106 OLED Display

Model No. WEO012864L

  • Type: Graphic
  • Structure: COG
  • Size: 1.28 inch
  • OLED Module 128×64
  • 3V power supply
  • 1/64 duty cycle
  • Interface: 6800 / 8080 / 3-SPI /4-SPI / I2C
  • IC：SH1106
  • Display Color: White / Yellow / Sky Blue
  • Other FPC options available in below table
Categories: ,

Description

WEO012864L is a 1.28″ SH1106 COG graphic OLED display module; it’s made of 128×64 dot matrix format. This 1.28 oled module is built in controller SH1106G oled IC; it supports 8-bit 6800 and 8080, 3-wire/4-wire SPI and I2C interfaces. Winstar provides ZIF FPC and Hotbar versions for customers to choose the suitable module for your application. These SH1106 OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid medical device, IoT system, etc.WEO012864L module supports internal Charge Pump supply and external VCC supply.



Drawing

Drawing

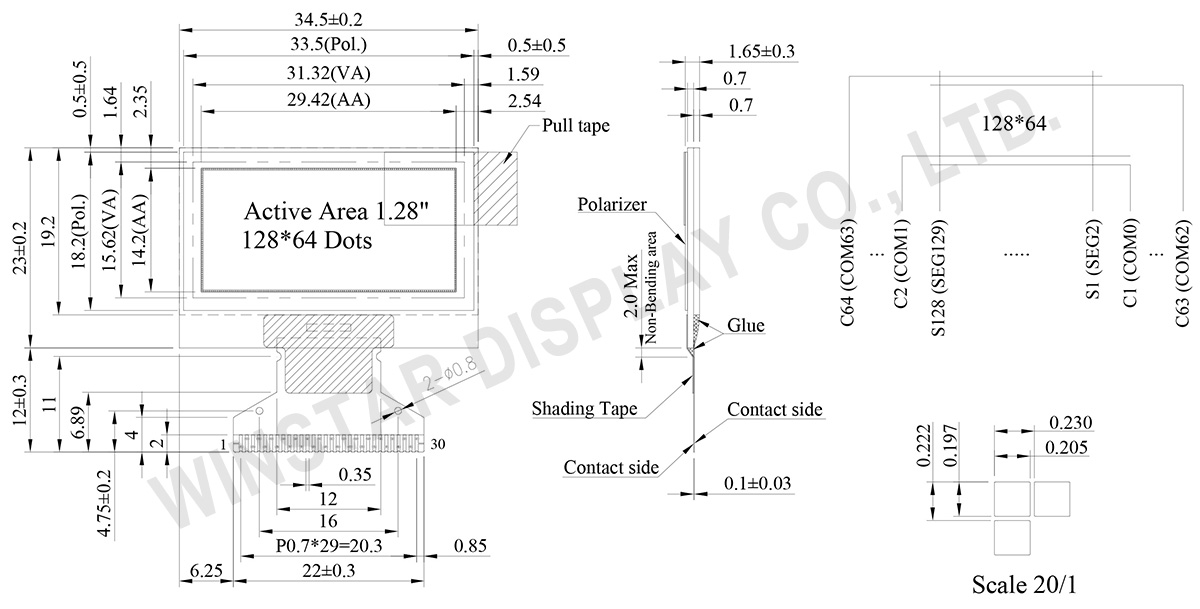

WEO012864L with Hotbar FPC

SH1106 OLED Display, 1.28 inch OLED, OLED SH1106 - WEO012864L with Hotbar FPC

Data source ref: WEO012864LLAP3N00000

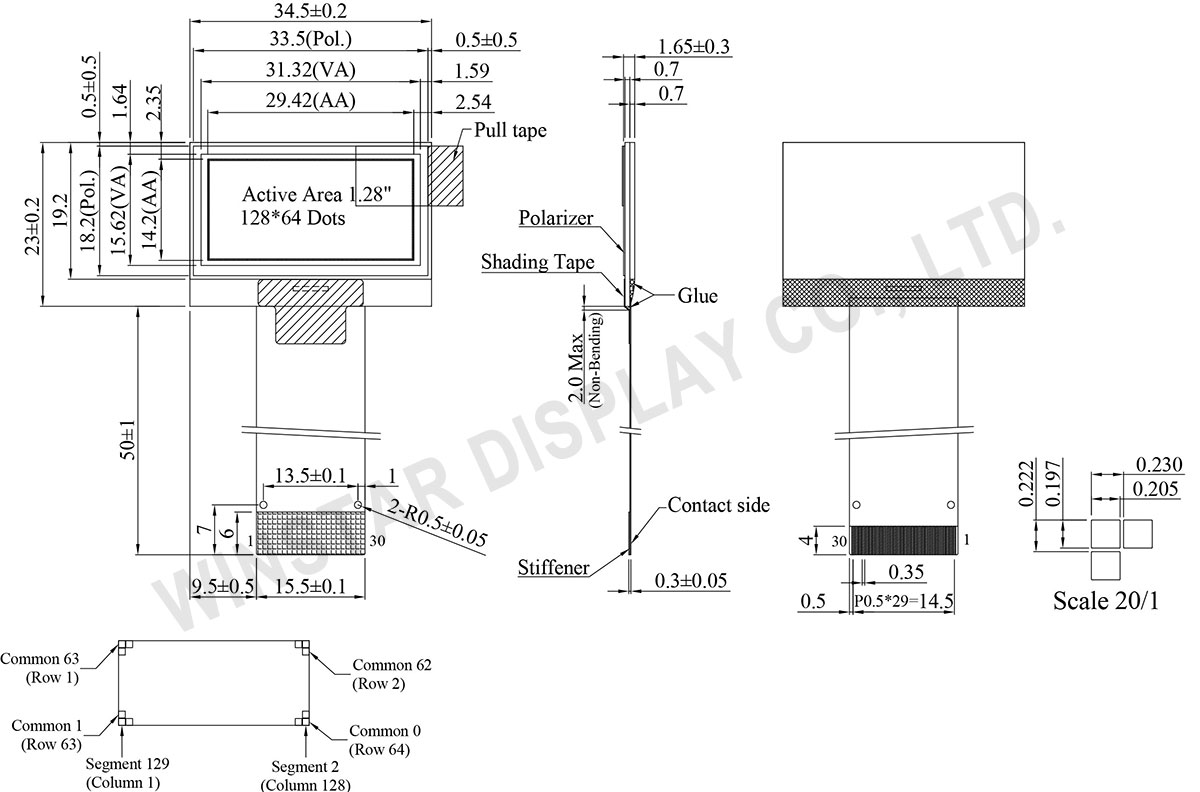

WEO012864L with ZIF FPC

Winstar SH1106 OLED, 1.28 inch OLED - WEO012864L with ZIF FPC

Data source ref: WEO012864LLAP3N00F00

SPECIFICATIONS

SPECIFICATIONS

Interface Pin Function

No. Symbol Function
1 NC(GND) No connection
2 C1N Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
3 C1P
4 C2P Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
5 C2N
6 VDD2 3.0 – 4.7V power supply pad for Power supply for charge pump circuit.
This pin should be disconnected when VPP is supplied externally
7 NC No connection
8 VSS Ground.
9 VDD1 Power supply input: 1.65 – 3.5V
10 IM0 These are the MPU interface mode select pads.

8080 I2C 6800 4-wire SPI 3-wire SPI
IM0 0 0 0 0 1
IM1 1 1 0 0 0
IM2 1 0 1 0 0
11 IM1
12 IM2
13 CSB This pad is the chip select input. When CSB = “L”, then the chip select becomes active, and data/command I/O is enabled.
14 RESB This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
15 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
16 WRB This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU WR signal. The signals on the data bus are latched at the rising edge of the WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/W = “H”: Read.
When R/W = “L”: Write.
17 RDB This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU , this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When RD = “H”: Enable.
When RD = “L”: Disable.
18 D0 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
19 D1
20 D2
21 D3
22 D4
23 D5
24 D6
25 D7
26 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
27 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
28 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
29 VSL This is a segment voltage reference pad.
This pad should be connected to VSS externally.
30 NC(GND) No connection

Mechanical Data

Mechanical Data

Item Dimension Unit
Dot Matrix 128 x 64 －
Module dimension 34.50 × 23.00 × 1.65 mm
Active Area 29.42 × 14.20 mm
Pixel Size 0.205 × 0.197 mm
Pixel Pitch 0.230 × 0.222 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
Controller IC SH1106
Interface 6800/8080/3-SPI /4-SPI / I2C
Size 1.28 inch



Absolute Maximum Ratings

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Logic VDD1 -0.3 3.6 V
Power supply for charge pump circuit VDD2 -0.3 4.8 V
Supply Voltage for Display VPP -0.3 14.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

Electronical Characteristics

Item Symbol Condition Min Typ Max Unit
Supply Voltage for Logic VDD1 － 2.8 3.0 3.3 V
Supply Voltage for Display VPP － 6.75 7.25 7.75 V
High Level Input VIH － 0.8xVDD1 － VDD1 V
Low Level Input VIL － VSS － 0.2xVDD1 V
High Level Output VOH － 0.8xVDD1 － VDD1 V
Low Level Output VOL － VSS － 0.2xVDD1 V
Display 50% Pixel on IPP VPP =7.25V － 6.0 9.0 mA

FPC Options:

FPC Options:

Drawing FPC Length PIN Pitch ZIF FPC or HOTBAR FPC Interface FPC No. Create Date
FPC2070003001XXXXX03_WEO012864LLPP3N00000 13.2 30 0.7 HOTBAR FPC 6800/8080/3-SPI /4-SPI / I2C FPC2070003001XXXXX03 20141107
FPC2050003011XXXXX18_WEO012864LWAP3N00F00 51.15 30 0.5 ZIF 6800/8080/3-SPI /4-SPI / I2C FPC2050003011XXXXX18 20180123
