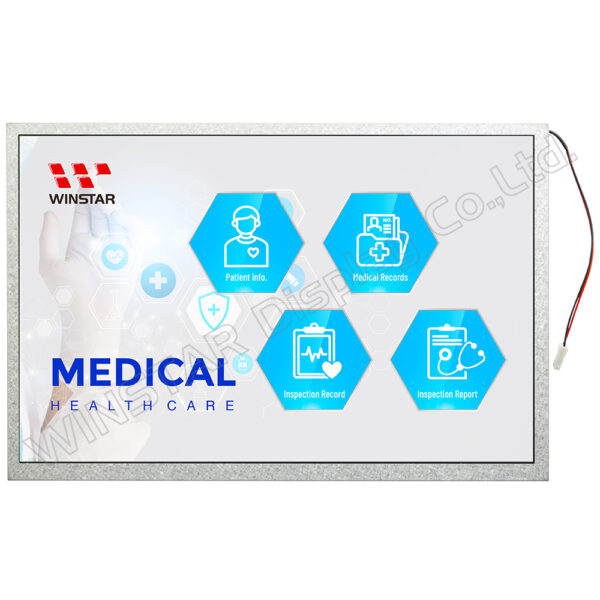

WF101NTYA4LNN0#000 features a 10.1 inch Quantum Dot (QD) TFT display boasting a resolution of 1920×1200 dots. Quantum dot (QD) technology represents a breakthrough in LCD displays, elevating color reproduction and saturation to new heights. At the core of this innovation are tiny semiconductor crystals known as quantum dots, which possess the remarkable ability to emit pure red, green, and blue light—the essential building blocks for vibrant displays. Through a process called photoluminescence, quantum dots imbue screens with richer, more lifelike colors, setting a new standard in visual excellence.
The QD LCD display technology employed in WF101NTYA4LNN0#000 unlocks a broader color gamut range, delivering unparalleled color purity and saturation. Aimed at achieving full 100% coverage of the NTSC color space, this display ensures every hue is rendered with exceptional fidelity. Equipped with the FL5893DA driver IC and supporting a 2ch-LVDS interface, this QD TFT LCD delivers both performance and versatility. Its IPS panel guarantees a wider viewing angle of Left: 80 / Right: 80 / Up: 80 / Down: 80 degrees, ensuring consistent image quality from various perspectives. Boasting a brightness of 500 cd/m² and a contrast ratio of 900:1, this display shines in both clarity and depth. Operating within a power supply range of 3.0V to 3.6V, with a typical value of 3.3V, and with an operating temperature range of -20 to +70°C, WF101NTYA4LNN0#000 is designed to excel in diverse environments, with a storage temperature extending from -30 to +80°C.
The application of quantum dot technology significantly enhances the color performance of displays, offering improved color accuracy and saturation. WF101NTYA4LNN0#000 sets a new benchmark for displays, promising vivid, true-to-life imagery across a range of applications and settings.
