5″ 800×480 TFT IPS LCD Module with Resistive Touch

Model No. WF50FSYBGDST0

Size: 5 inch
Resolution : 800×480 dots
View Direction : IPS
Interface : SPI/QSPI
Driver IC : BT816Q
Control-Board : Yes
Brightness(cd/m²) : 650
Frame Through Hole : Yes
Touch Screen : Resistive Touch Panel (RTP)
Operating Temperature : -20~+70°C

Description

WF50FSYBGDST0 is a 5-inch TFT-LCD module with a resistive touch panel (RTP). It features a resolution of 800×480 dots and a brightness of 650 cd/m². The module dimension is 138.7 x 75.8 mm with an active area of 108 x 64.8 mm and a 5:3 aspect ratio. This module is built-in with BT816Q driver IC which supports SPI/ QSPI interfaces.

The module adopts an IPS panel for broader view angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical value) and an anti-glare glass surface. The display’s supply voltage (VCC) is from 3.1V to 3.5V, and the typical value is 3.3V. WF50FSYBGDST0 can operate at temperatures from -20℃ to +70℃, and its storage temperatures also range from -30℃ to +80℃.

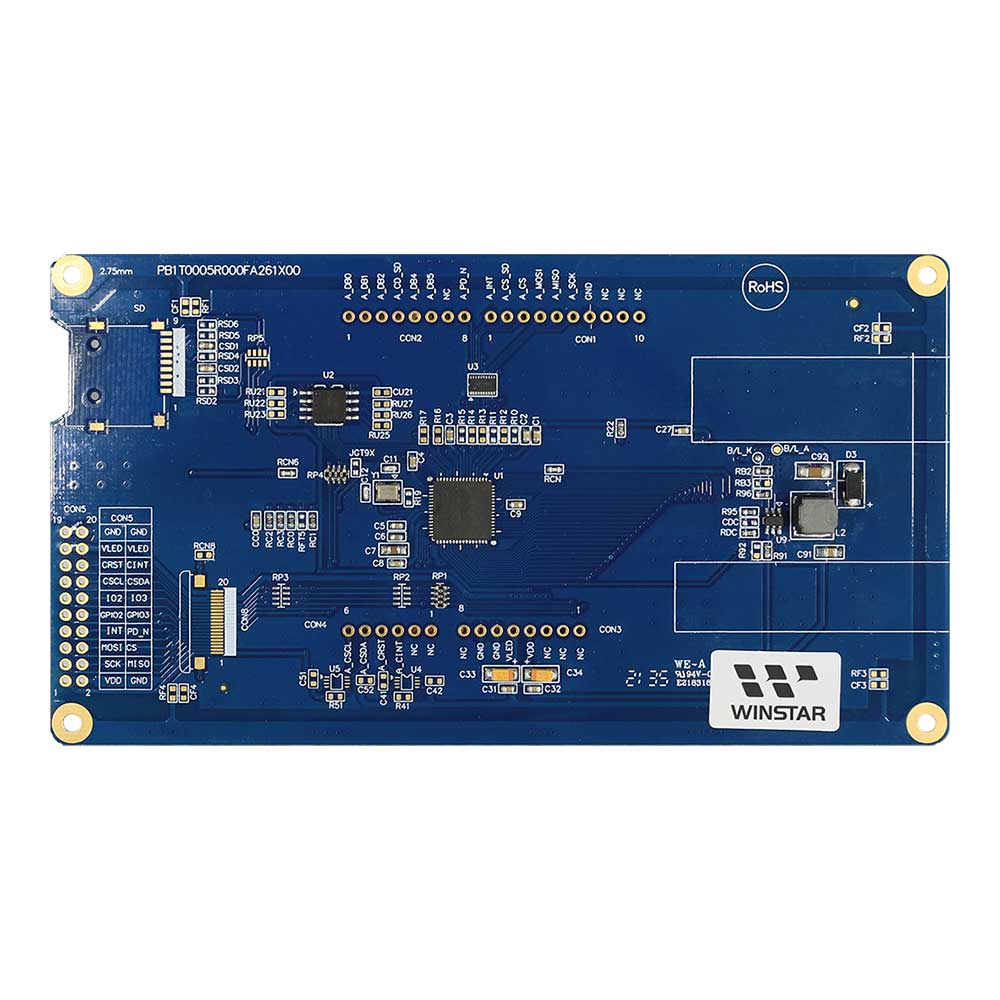

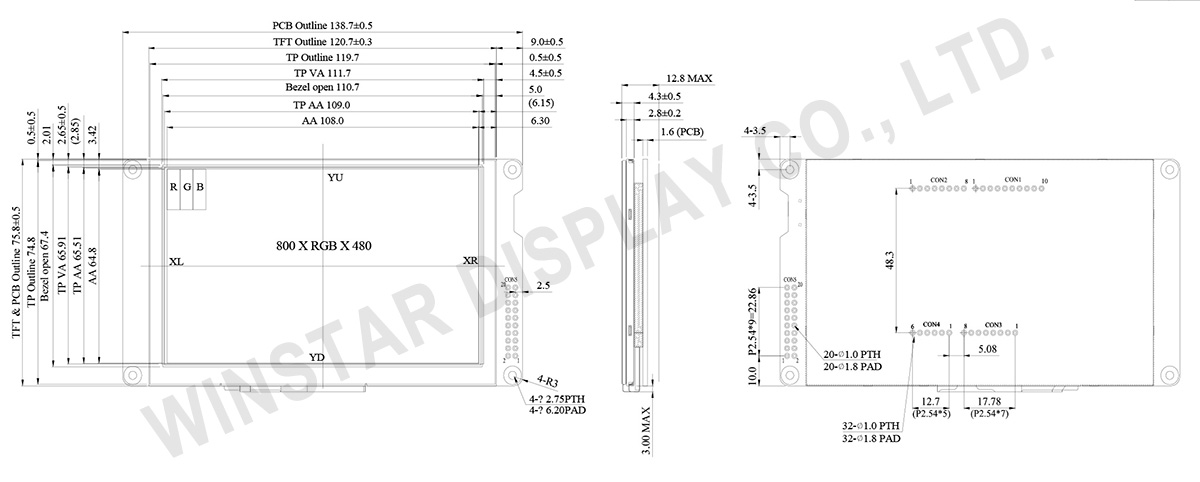

Drawing

Specifications

Interface

LCM PIN Definition (CON5)

Pin	Symbol	I/O	Function
1	VDD	P	3.3V power supply input
2	GND	P	Ground
3	SCK	I	SPI clock input
4	MISO	O	SPI Single mode: SPI MISO output SPI Dual/Quad mode: SPI data line 1
5	MOSI	I	SPI Single mode: SPI MOSI input SPI Dual/Quad mode: SPI data line 0
6	CS	I	SPI slave select input
7	INT	OD/O	Interrupt to host, open drain output(default) or push-pull output, active low
8	PD_N	I	Chip power down mode control input, active low. Connect to MCU GPIO for power management or hardware reset function
9	GPIO2	I/O	General purpose IO 2
10	GPIO3	I/O	General purpose IO 3
11	IO2	I/O	SPI Single/Dual mode: General purpose IO 0 SPI Quad mode: SPI data line 2
12	IO3	I/O	SPI Single/Dual mode: General purpose IO 1 SPI Quad mode: SPI data line 3
13	NC	–	No connection
14	NC	–	No connection
15	NC	–	No connection
16	NC	–	No connection
17	VLED	P	5V power supply input
18	VLED	P	5V power supply input
19	GND	P	Ground
20	GND	P	Ground

General Specifications

Item	Dimension	Unit
Size	5	inch
Dot Matrix	800× 3(RGB) × 480	dots
Module dimension	138.7 (W) x 75.8 (H) x 12.8(D)(MAX)	mm
Active area	108 x 64.8	mm
Pixel pitch	0.135(W) ×0.135(H)	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	80/80/80/80
Aspect Ratio	5:3
Backlight Type	LED, Normally White
TFT Controller IC	BT816Q
TFT Interface	SPI/QSPI
Touch Panel	Resistive Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For VDD	VDD	－	3.1	3.3	3.5	V
Supply Current For VDD	IDD	VDD=3.3V	－	96	144	mA
Supply Voltage For VLED	VLED	－	4.5	5	5.5	V
Supply Current For VLED	ILED	VLED=+5V	－	334	500	mA
